Brand: Actek
ACTEK AK46404 SWIVEL HOIST RING 1-1/2-6 24000 LBS
SKU: AK-AK46404
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the unbeatable power and durability of the ACTEK AK46404 SWIVEL HOIST RING, designed with precision thread sizes of 1-1/2"-6 and a thread length of 2.7 inches. Boasting a remarkable rated load of 24,000 pounds, this versatile hoist ring also features a U-bar radius of 2.27 inches, a U-bar height of 6.50 inches, and a U-bar diameter of 1 3/4 inches. With a sturdy bushing head diameter of 4.15 inches, an impressive swivel angle of 360 degrees, and a pivot angle of 180 degrees, this product ensures maximum safety with a 5:1 safety factor. Made with high-quality alloy steel and finished with black oxide per MIL specifications, this hoist ring is built to last and can handle a torque of 800 ft-lbs. Weighing in at just 34 pounds, this product is
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
AK46404 SWIVEL HOIST RING 1-1/2-6 24000 LBS

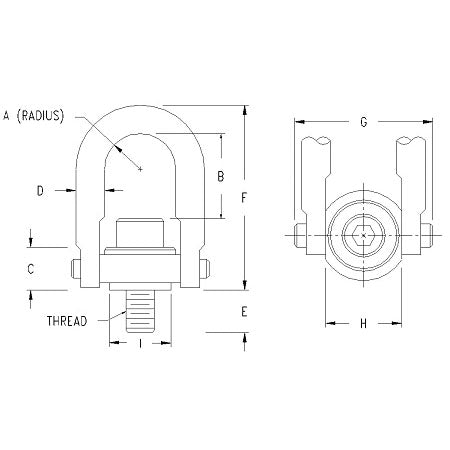

| Part Number | Thread Size | Thread Length (E) | Rated Load | U-bar Radius (A) | U-bar Height (B) | C | D | F | G | H | Torque | Weight | Replacement Screw | Bushing Head Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AK46404 | 1 1/2" - 6 | 2.7 in | 24,000 lbs | 2.27 in | 6.50 in | 2.81 in | 1 3/4 in | 12.56 in | 8.34 in | 4.87 in | 800 ft-lbs | 34 lbs | 46444 | 4.15 in |
