Brand: Actek
ACTEK AK46354 6,500 LBS EXT. SWIVEL HOIST RING 1-8, 1-1/2" THREAD PROJ. 200% PROOF-LOAD TESTED W/SERIAL #
SKU: AK-AK46354
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the ACTEK AK46354 6,500 LBS EXT. SWIVEL HOIST RING 1-8, 1-1/2" THREAD PROJ. 200% PROOF-LOAD TESTED W/SERIAL #, the ultimate solution for all your lifting needs. This powerful U-Bar, manufactured by Actek Manufacturing & Engineering, boasts a 1"-8 thread size, 1-1/2" thread length, and can handle a maximum load of 6,500 lbs with ease. Rest assured, this product has been thoroughly tested with a safety factor of 5:1 and proven to withstand 200% of its rated load, making it the most reliable option in the market. With a 360° swivel angle and 180° pivot angle, this versatile hoist ring provides ultimate flexibility and convenience in any lifting scenario. Constructed with high-quality alloy steel and finished with a black oxide coating per MIL specifications, this product is built to last.
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK46354 6,500 LBS EXT. SWIVEL HOIST RING 1-8, 1-1/2" THREAD PROJ. 200% PROOF-LOAD TESTED W/SERIAL #

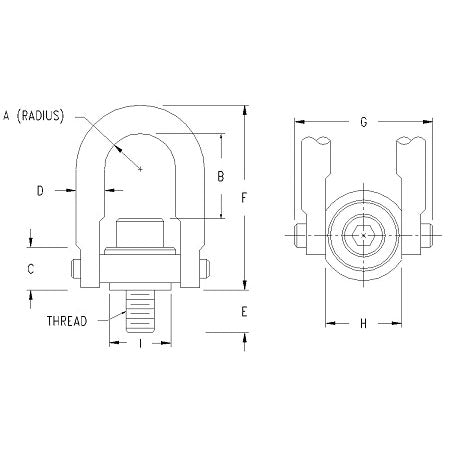

| Part Number | Thread Size | Thread Length (E) | Rated Load | U-bar Radius (A) | U-bar Height (B) | C | D | F | G | H | Torque | Weight | Replacement Screw | Bushing Head Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46354 | 1" - 8 | 1.53 in | 6,500 lbs | .92 in | 1.96 in | 1.25 in | 3/4 in | 4.95 in | 3.66 in | 1.98 in | 230 ft-lbs | 3 lbs | 46313 | 1.99 in |
