Brand: Actek
ACTEK AK46202 SWIVEL HOIST RING 7/8-9 8000 LBS 1.04IN THREAD PROJ. STANDARD U-BAR
SKU: AK-AK46202
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the incredible value of the ACTEK AK46202 SWIVEL HOIST RING, a versatile and powerful tool that can handle up to 8000 lbs with ease. Made of high-quality Alloy Steel and finished with Black Oxide per MIL Specification, this 7/8"-9 thread size, 1.04 inch thread length hoist ring is designed to withstand even the toughest jobs. With a 360° swivel angle and 180° pivot angle, it offers maximum flexibility and precision. Its U-bar shape, with a radius of 1.41 in, height of 3.02 in, and diameter of 1 in, provides optimal stability and support. Don't settle for less - choose the ACTEK AK46202 SWIVEL HOIST RING and elevate your lifting game today!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
AK46202 SWIVEL HOIST RING 7/8-9 8000 LBS

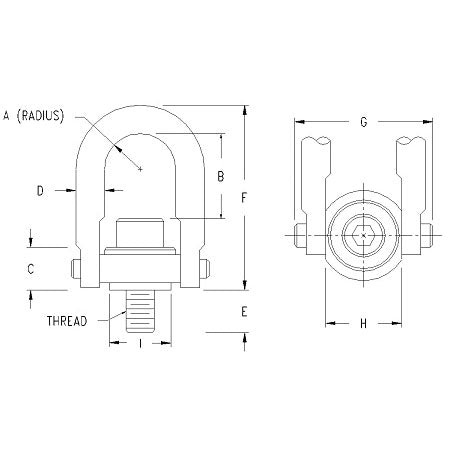

| Part Number | Thread Size | Thread Length (E) | Rated Load | U-bar Radius (A) | U-bar Height (B) | C | D | F | G | H | Torque | Weight | Replacement Screw | Bushing Head Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AK46202 | 7/8" - 9 | 1.04 in | 8,000 lbs | 1.41 in | 3.02 in | 1.71 in | 1 in | 6.60 in | 5.16 in | 3 in | 160 ft-lbs | 7 lbs | 46242 | 2.2 in |
