Brand: Actek

ACTEK AK44980 13,500 KGS METRIC ROUND BASE HOIST RING 1-3/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #

SKU: AK-AK44980
MPN: AK44980

$685.71
Unit price per
Save $50.95

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the unmatched quality and reliability of the ACTEK AK44980! This 13,500 kg metric round base hoist ring, featuring a sturdy 1-3/4" U-bar and M48 thread/hole, has been 200% proof-load tested and comes with a unique serial number for added assurance. Manufactured by Actek Manufacturing & Engineering, part number 44980, this metric round plate hoist ring is designed to deliver exceptional performance and safety. With a swivel angle of 360° and pivot angle of 180°, along with a 5:1 safety factor and 1085 Nm torque, this alloy steel hoist ring is the perfect choice for your lifting needs. Don't settle for less - choose ACTEK AK44980 and experience the difference!

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

ACTEK AK44980 13,500 KGS METRIC ROUND BASE HOIST RING 1-3/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #

Manufacturer: Actek Manufacturing & Engineering

Part Number: 44980

Description: Metric Round Plate Hoist Ring

Rated Load: 13,500 kg

Swivel Angle: 360°

Pivot Angle: 180°

Safety Factor: 5:1

Torque: 1085 Nm

Weight: 40 lbs

Material: Alloy Steel

Finish: Black Oxide|Cadmium Plated

High Strength Alloy screws must be used.
Both UNC and Coil available.

Swivel 360° and pivots 180°.
Direct mounting.
Wide round base helps distribute shear loads.
Alloy Steel
Magnetic Particle Inspected.
Rated load capacities from 2500 lbs. to 20000 lbs.
Many OEM applications.
Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
Safety Factor : 5:1.
Note :Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

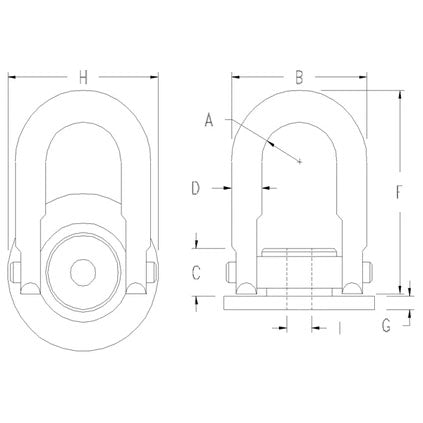

Part Number	Rated Load	A	B	C	D	F	G	H	Thread or Hole (I)	Torque	Weight
44980	13,500 kg	2.25 in	8 in	2 3/8 in	1 3/4 in	12 in	11/16 in	8 1/2 in	M48	1085 Nm	40 lbs
