ACTEK AK44968 12,500 KGS METRIC ROUND BASE HOIST RING 1-3/4 U BAR M42 200% PROOF-LOAD TESTED W/SERIAL #
ACTEK AK44968 12,500 KGS METRIC ROUND BASE HOIST RING 1-3/4 U BAR M42 200% PROOF-LOAD TESTED W/SERIAL #

Brand: Actek

ACTEK AK44968 12,500 KGS METRIC ROUND BASE HOIST RING 1-3/4 U BAR M42 200% PROOF-LOAD TESTED W/SERIAL #

SKU: AK-AK44968
MPN: AK44968

  • Save $56.03
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the unparalleled strength and reliability of the ACTEK AK44968 12,500 KGS METRIC ROUND BASE HOIST RING! Engineered with precision and tested with a 200% PROOF-LOAD, this 1-3/4" U-Bar with M42 thread/hole hoist ring from Actek Manufacturing & Engineering will not disappoint. With a 360° swivel angle and 180° pivot angle, you can trust in its versatility and safety, while its 5:1 safety factor and 1085 Nm torque ensure peace of mind. Made of durable alloy steel and finished with a sleek black oxide, this hoist ring is a must-have for any heavy-duty project. Don't miss out - order now and elevate your lifting game!

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

ACTEK AK44968 12,500 KGS METRIC ROUND BASE HOIST RING 1-3/4 U BAR M42 200% PROOF-LOAD TESTED W/SERIAL #



High Strength Alloy screws must be used.
Both UNC and Coil available.
  • Swivel 360° and pivots 180°.
  • Direct mounting.
  • Wide round base helps distribute shear loads.
  • Alloy Steel
  • Magnetic Particle Inspected.
  • Rated load capacities from 2500 lbs. to 20000 lbs.
  • Many OEM applications.
  • Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
  • Safety Factor : 5:1.
    Note :Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

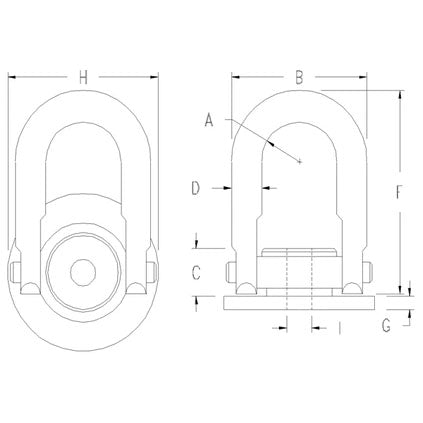

Part Number Rated Load A B C D F G H Thread or Hole (I) Torque Weight
44968 12,500 kg 2.25 in 8 in 2 3/8 in 1 3/4 in 12 in 11/16 in 8 1/2 in M42 1085 Nm 40 lbs
