Brand: Actek

ACTEK AK44966 11,000 KGS METRIC ROUND BASE HOIST RING FOR M36 SCREW 1-3/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #

SKU: AK-AK44966
MPN: AK44966

$685.71
Unit price per
Save $50.95

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the incredible strength and reliability of the ACTEK AK44966 11,000 KGS METRIC ROUND BASE HOIST RING FOR M36 SCREW! Designed and manufactured by Actek Manufacturing & Engineering, this top-of-the-line hoist ring features a 1-3/4" U bar, M36 thread/hole, and has been put through a rigorous 200% proof-load test, ensuring its exceptional quality and durability. With a swivel angle of 360° and a pivot angle of 180°, this hoist ring offers unmatched versatility and ease of use. Boasting a 5:1 safety factor and able to withstand a torque of 1085 Nm, this hoist ring is a powerful tool that you can rely on for all your lifting needs. Made of strong and sturdy alloy steel with a sleek black oxide finish, this hoist ring is not only functional but also visually appealing. Don't miss out on the value and performance that the ACTEK AK44966 has to offer

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

ACTEK AK44966 11,000 KGS METRIC ROUND BASE HOIST RING FOR M36 SCREW 1-3/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #

Manufacturer: Actek Manufacturing & Engineering

Part Number: 44966

Description: Metric Round Plate Hoist Ring

Rated Load: 11,000 kg

Swivel Angle: 360°

Pivot Angle: 180°

Safety Factor: 5:1

Torque: 1085 Nm

Weight: 40 lbs

Material: Alloy Steel

Finish: Black Oxide|Cadmium Plated

High Strength Alloy screws must be used.
Both UNC and Coil available.

Swivel 360° and pivots 180°.
Direct mounting.
Wide round base helps distribute shear loads.
Alloy Steel
Magnetic Particle Inspected.
Rated load capacities from 2500 lbs. to 20000 lbs.
Many OEM applications.
Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
Safety Factor : 5:1.
Note :Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

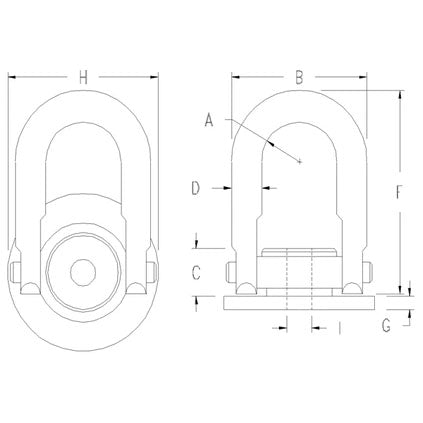

Part Number	Rated Load	A	B	C	D	F	G	H	Thread or Hole (I)	Torque	Weight
44966	11,000 kg	2.25 in	8 in	2 3/8 in	1 3/4 in	12 in	11/16 in	8 1/2 in	M36	1085 Nm	40 lbs
