Brand: Actek
ACTEK AK44962 10,000 KGS METRIC ROUND BASE HOIST RING M36 SCREW SIZE 1-1/2 U BAR 200% PROOF-LOAD TESTED W/SERIAL #
SKU: AK-AK44962
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Embrace the power and reliability of the ACTEK AK44962 10,000 KGS METRIC ROUND BASE HOIST RING! With a M36 thread/hole and 1-1/2" U-bar design, this hoist ring is the ultimate solution for lifting heavy loads. Assembled with precision by Actek Manufacturing & Engineering, it boasts a 200% PROOF-LOAD test and a 5:1 safety factor for your peace of mind. Don't miss out on this durable and versatile hoist ring. Order today and experience the strength and expertise of Actek!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK44962 10,000 KGS METRIC ROUND BASE HOIST RING M36 SCREW SIZE 1-1/2 U BAR 200% PROOF-LOAD TESTED W/SERIAL #
Both UNC and Coil available.
- Swivel 360° and pivots 180°.
- Direct mounting.
- Wide round base helps distribute shear loads.
- Alloy Steel
- Magnetic Particle Inspected.
- Rated load capacities from 2500 lbs. to 20000 lbs.
- Many OEM applications.
- Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
- Safety Factor : 5:1.
Note :Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

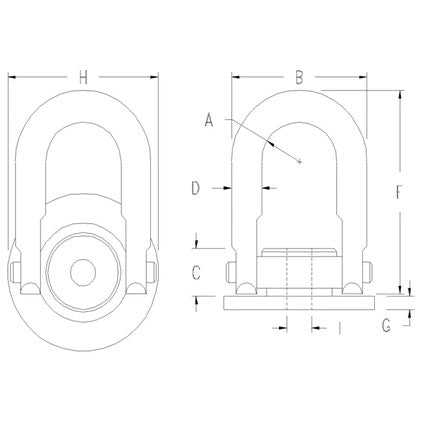

| Part Number | Rated Load | A | B | C | D | F | G | H | Thread or Hole (I) | Torque | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44962 | 10,000 kg | 2.00 in | 7 11/32 in | 2 in | 1 1/2 in | 10 5/16 in | 1/2 in | 7 in | M36 | 1085 Nm | 24 lbs |
