Brand: Actek
ACTEK AK44961 7,000 KGS M36 METRIC ROUND BASE HOIST RING 1-1/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #
SKU: AK-AK44961
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the power and reliability of the ACTEK AK44961 7,000 KGS M36 METRIC ROUND BASE HOIST RING 1-1/4" U BAR. Tested at 200% proof load and proudly bearing its unique serial number, this product from Actek Manufacturing & Engineering is designed to exceed your expectations. With a swivel angle of 360° and a pivot angle of 180°, it offers maximum flexibility and strength. Made of durable alloy steel and finished with black oxide, this hoist ring can handle a rated load of 7,000 kg with a safety factor of 5:1. Experience the exceptional quality and performance of the ACTEK AK44961 and elevate your lifting capabilities today!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK44961 7,000 KGS M36 METRIC ROUND BASE HOIST RING 1-1/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #
Both UNC and Coil available.
- Swivel 360° and pivots 180°.
- Direct mounting.
- Wide round base helps distribute shear loads.
- Alloy Steel
- Magnetic Particle Inspected.
- Rated load capacities from 2500 lbs. to 20000 lbs.
- Many OEM applications.
- Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
- Safety Factor : 5:1.
Note :Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

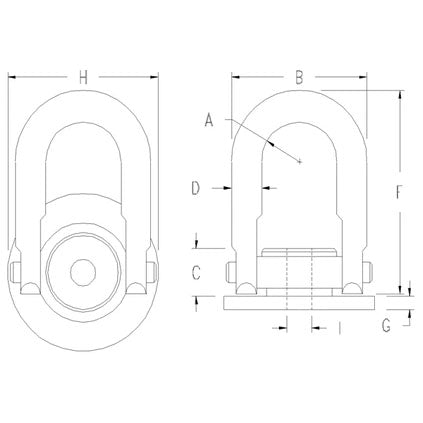

| Part Number | Rated Load | A | B | C | D | F | G | H | Thread or Hole (I) | Torque | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44961 | 7,000 kg | 1.75 in | 6 in | 1 7/8 in | 1 1/4 in | 8 1/2 in | 1/2 in | 7 in | M36 | 1085 Nm | 17 lbs |
