Brand: Actek
ACTEK AK44960 7,000 KGS M33 METRIC ROUND BASE HOIST RING 1-1/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #
SKU: AK-AK44960
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the amazing ACTEK AK44960 7,000 KGS M33 METRIC ROUND BASE HOIST RING, the ultimate lifting and rigging solution for all your heavy-duty needs! Featuring a sturdy 1-1/4" U BAR with M33 thread/hole, this exceptional product goes above and beyond with a 200% PROOF-LOAD TEST and reliable serial number for added peace of mind. From the highly trusted manufacturer Actek Manufacturing & Engineering, this Metric Round Plate Hoist Ring is engineered with a 360° swivel angle and 180° pivot angle, ensuring maximum flexibility and safety. With a remarkable 5:1 safety factor, 937 Nm torque, and lightweight alloy steel construction with a sleek black oxide finish, this product is truly a game changer. Don't miss out on experiencing the value and benefits of the ACTEK AK44960 - add it to your toolkit today!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK44960 7,000 KGS M33 METRIC ROUND BASE HOIST RING 1-1/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #
Both UNC and Coil available.
- Swivel 360° and pivots 180°.
- Direct mounting.
- Wide round base helps distribute shear loads.
- Alloy Steel
- Magnetic Particle Inspected.
- Rated load capacities from 2500 lbs. to 20000 lbs.
- Many OEM applications.
- Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
- Safety Factor : 5:1.
Note :Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

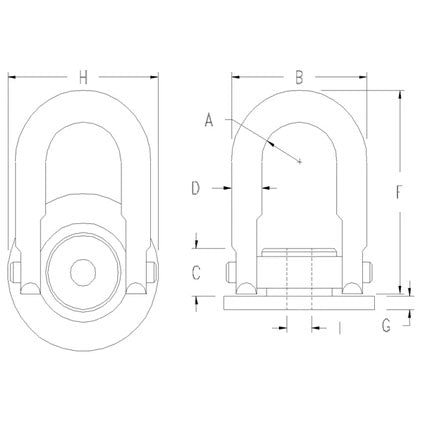

| Part Number | Rated Load | A | B | C | D | F | G | H | Thread or Hole (I) | Torque | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44960 | 7,000 kg | 1.75 in | 6 in | 1 7/8 in | 1 1/4 in | 8 1/2 in | 1/2 in | 7 in | M33 | 937 Nm | 17 lbs |
