Brand: Actek
ACTEK AK44956 7,000 KGS M30 METRIC ROUND BASE HOIST RING 1-1/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #
SKU: AK-AK44956
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the ACTEK AK44956 7,000 KGS M30 Metric Round Base Hoist Ring, designed with precision and passion by Actek Manufacturing & Engineering - the industry leader in quality and reliability. This hoist ring boasts 1-1/4" U bar and M30 thread/hole, providing a rated load of 7,000 kg and a swivel angle of 360° for maximum flexibility and efficiency. Every hoist ring is 200% PROOF-LOAD TESTED and equipped with a serial number for your peace of mind. With a safety factor of 5:1 and a torque of 637 Nm, this hoist ring is built to withstand even the most demanding tasks. Made with durable alloy steel and finished with black oxide, this is a must-have for any heavy lifting operation. Trust in the value and performance of ACTEK - because your success is our passion!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK44956 7,000 KGS M30 METRIC ROUND BASE HOIST RING 1-1/4 U BAR 200% PROOF-LOAD TESTED W/SERIAL #
Both UNC and Coil available.
- Swivel 360° and pivots 180°.
- Direct mounting.
- Wide round base helps distribute shear loads.
- Alloy Steel
- Magnetic Particle Inspected.
- Rated load capacities from 2500 lbs. to 20000 lbs.
- Many OEM applications.
- Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
- Safety Factor : 5:1.
Note :Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

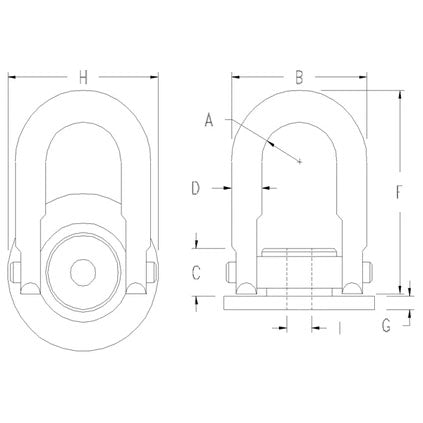

| Part Number | Rated Load | A | B | C | D | F | G | H | Thread or Hole (I) | Torque | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44956 | 7,000 kg | 1.75 in | 6 in | 1 7/8 in | 1 1/4 in | 8 1/2 in | 1/2 in | 7 in | M30 | 637 Nm | 17 lbs |
