Brand: Actek
ACTEK AK44936 2,150 KGS METRIC ROUND BASE HOIST RING M20 SCREW 3/4 U-BAR 200% PROOF-LOAD TESTED W/SERIAL #
SKU: AK-AK44936
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the unmatched quality and performance of the ACTEK AK44936 2,150 KGS Metric Round Base Hoist Ring! Tested at 200% of its proof-load and equipped with a powerful M20 screw and 3/4" U-bar, this ring is the perfect combination of strength and precision. Crafted with passion and expertise by Actek Manufacturing & Engineering, this ring is sure to exceed your expectations. Order yours today and see for yourself why the AK44936 is a must-have for any industrial setting!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK44936 2,150 KGS METRIC ROUND BASE HOIST RING M20 SCREW 3/4 U-BAR 200% PROOF-LOAD TESTED W/SERIAL #
Both UNC and Coil available.
- Swivel 360° and pivots 180°.
- Direct mounting.
- Wide round base helps distribute shear loads.
- Alloy Steel
- Magnetic Particle Inspected.
- Rated load capacities from 2500 lbs. to 20000 lbs.
- Many OEM applications.
- Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
- Safety Factor : 5:1.
Note :Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

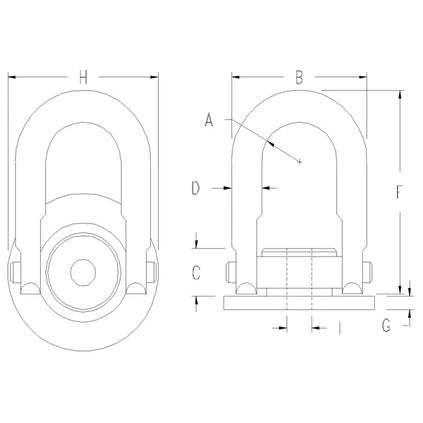

| Part Number | Rated Load | A | B | C | D | F | G | H | Thread or Hole (I) | Torque | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44936 | 2,150 kg | 0.88 in | 3 1/4 in | 1 7/64 in | 3/4 in | 6 3/4 in | 1/4 in | 3 1/2 in | M20 | 135 Nm | 3.5 lbs |
