Brand: Actek
ACTEK AK44660 ROUND BASE HOIST RING 3/4-10 7000 LBS
SKU: AK-AK44660
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Enhance your lifting capabilities with the high-quality ACTEK AK44660 ROUND BASE HOIST RING. Designed with a 3/4"-10 thread size, it is capable of handling a heavy load of 7,000 lbs. The 360° swivel angle and 180° pivot angle provide maximum flexibility and maneuverability. With a safety factor of 5:1 and a torque of 100 ft-lbs, this hoist ring ensures safe and efficient lifting. Made of durable alloy steel and finished with black oxide, it is built to last. Weighing only 9 lbs, it is lightweight and easy to use. Elevate your lifting game now with the ACTEK AK44660 ROUND BASE HOIST RING!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
AK44660 ROUND BASE HOIST RING 3/4-10 7000 LBS
High Strength Alloy screws must be used.
Both UNC and Coil available.
- Swivel 360° and pivots 180°.
- Direct mounting.
- Wide round base helps distribute shear loads.
- Alloy Steel
- Magnetic Particle Inspected.
- Rated load capacities from 2500 lbs. to 20000 lbs.
- Many OEM applications.
- Perfect for pre-cast concrete products: simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
- Safety Factor: 5:1.
Note: Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

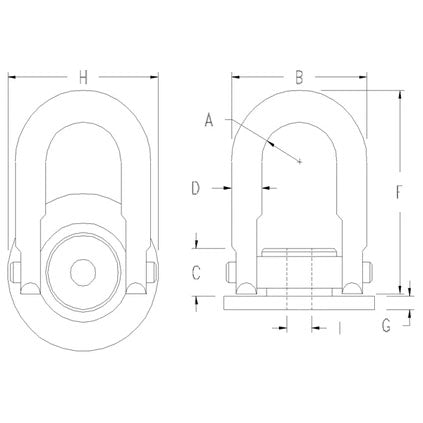

| Part Number | Rated Load | A | B | C | D | F | G | H | Thread or Hole (I) | Torque | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AK44660 | 7,000 lbs | 1.40 in | 4 13/16 in | 1 1/2 in | 1 in | 8 in | 13/32 in | 5 in | 3/4 in | 100 ft-lbs | 9 lbs |
