Brand: Actek

ACTEK AK44620 1-8 PIVOT LIFTING PLATE

SKU: AK-AK44620
MPN: AK44620

  • $255.55
    Unit price per
  • Save $18.98
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


ACTEK AK44620 1-8 PIVOT LIFTING PLATE

Discover the versatility and reliability of ACTEK's AK44620 1-8 Pivot Lifting Plate. Crafted from aircraft quality alloy, this lifting plate boasts a black oxide finish per mil spec, with cadmium plating available upon request. With a safety factor of 5:1 and certified heat treatment, it ensures durability and strength in every application. Featuring 100% magnetic particle inspection, you can trust in its quality and performance. Its large bail pivots 180°, offering flexibility for various lifting needs. Ideal for certain OEM applications, its rugged tapered plate minimizes shear force on high-strength alloy screws. The base plate can be welded into position, eliminating the need for screws. Use with a high-tensile alloy screw equivalent to Grade 8 for optimal performance. Choose ACTEK for dependable lifting solutions tailored to your needs.

Technical Specifications:

  • Material: Aircraft Quality Alloy
  • Finish: Black oxide per mil spec. (cadmium plated available)
  • Safety Factor: 5:1
  • Certified heat treatment
  • 100% magnetic particle inspected
  • Large bail pivots 180?
  • Ideal for certain OEM applications
  • Rugged tapered plate minimizes shear force on high strength alloy screw
  • Base plate can be welded into position, thus eliminating the use of screws
  • Use high tensile alloy screw equivalent to Grade 8

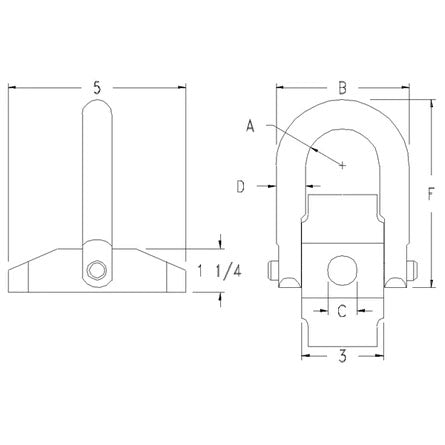

Rated Load

ACTEK AK44620 1-8 PIVOT LIFTING PLATE 10000 lbf

A

ACTEK AK44620 1-8 PIVOT LIFTING PLATE 1.400 in

B

ACTEK AK44620 1-8 PIVOT LIFTING PLATE 4.813 in

C

ACTEK AK44620 1-8 PIVOT LIFTING PLATE 1.000 in

D

ACTEK AK44620 1-8 PIVOT LIFTING PLATE 1.000 in

F

ACTEK AK44620 1-8 PIVOT LIFTING PLATE 1-8

Torque

ACTEK AK44620 1-8 PIVOT LIFTING PLATE 230 lb·ft

Weight

ACTEK AK44620 1-8 PIVOT LIFTING PLATE 7.30 lb
