ACTEK AK44610 3/4-10 PIVOT LIFTING PLATE

ACTEK AK44610 3/4-10 PIVOT LIFTING PLATE

Experience the versatility and durability of ACTEK's AK44610 3/4-10 Pivot Lifting Plate. Crafted from aircraft quality alloy, this lifting plate boasts a black oxide finish per mil spec, with cadmium plating available upon request. With a safety factor of 5:1 and certified heat treatment, it ensures reliability and strength in every application. Featuring 100% magnetic particle inspection, you can trust in its quality and performance. Its large bail pivots 180°, offering flexibility for various lifting needs. Ideal for certain OEM applications, its rugged tapered plate minimizes shear force on high-strength alloy screws. The base plate can be welded into position, eliminating the need for screws. Use with a high-tensile alloy screw equivalent to Grade 8 for optimal performance. Choose ACTEK for dependable lifting solutions in any environment.

Technical Specifications:

• Material: Aircraft Quality Alloy
• Finish: Black oxide per mil spec. (cadmium plated available)
• Safety Factor: 5:1
• Certified heat treatment
• 100% magnetic particle inspected
• Large bail pivots 180?
• Ideal for certain OEM applications
• Rugged tapered plate minimizes shear force on high strength alloy screw
• Base plate can be welded into position, thus eliminating the use of screws
• Use high tensile alloy screw equivalent to Grade 8

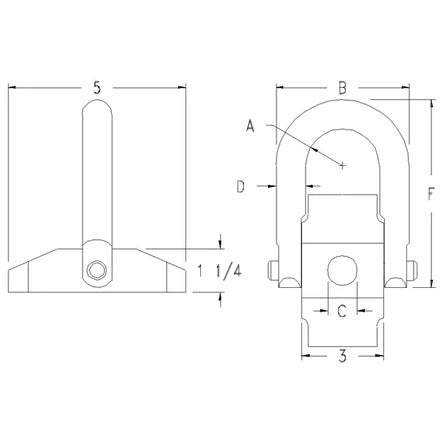

Rated Load		7000 lbf
A		1.400 in
B		4.813 in
C		0.750 in
D		1.000 in
F		3/4-10
Torque		100 lb·ft
Weight		7.50 lb
