Brand: Actek
ACTEK AK44420 PIVOT LIFTING PLATE 1-8 10000 lbs
SKU: AK-AK44420
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the power and reliability of the ACTEK AK44420 PIVOT LIFTING PLATE 1-8, capable of lifting up to 10000 lbs with ease and precision. Featuring a thread size of 1" - 8 and a pivot angle of 180°, this lifting plate is made of durable alloy steel with a sleek black oxide finish. With a safety factor of 5:1 and a torque of 230 ft-lbs, it is the perfect addition to your lifting arsenal. Don't miss out on this must-have tool for all your heavy lifting needs!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
AK44420 PIVOT LIFTING PLT 1-8 10000 lbs
High Strength Alloy screws must be used.
Both UNC and Coil available.
- Large Bail Pivots 180°.
- Rugged tapered plate minimizes shear force on high strength alloy screw.
- Base plate can be welded into position thus eliminating use of screws.
- Alloy Steel
- Ideal for some OEM applications.
- Rated lifting capacity from 7000 lbs. to 10000 lbs.
- Safety Factor: 5:1.
- Thread engagement 1 1/2 times screw diameter.
- Use high tensile alloy screw equivalent to Grade 8.

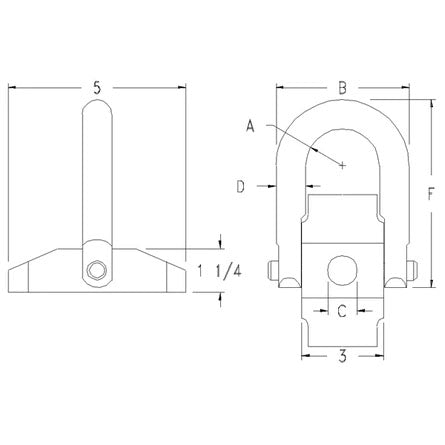

| Part Number | Rated Load | Thread Size | A | B | C | D | F | Torque | Weight |
|---|---|---|---|---|---|---|---|---|---|
| AK44420 | 10,000 lbs | 1" - 8 | 1.40 in | 4 13/16 in | 1 in | 1 in | 6 1/2 in | 230 ft-lbs | 6.7 lbs |
