Brand: Actek

ACTEK AK44404 24,000 LBS SWIVEL ROUND PLATE HOIST RING THREAD SIZE: 1 1/2 200% PROOF-LOAD TESTED W/SERIAL #

SKU: AK-AK44404
MPN: AK44404

  • $686.17
    Unit price per
  • Save $50.97
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Introducing the ACTEK AK44404 24,000 lb Swivel Round Plate Hoist Ring, now with even stronger thread size of 1 1/2. This industry-leading product has been 200% proof-load tested and comes with a unique serial number for added assurance. Trust in the quality and reliability of the Actek Manufacturing & Engineering brand with this standard round plate hoist ring, delivering a 360° swivel angle and 180° pivot angle. With a superior safety factor of 5:1 and an impressive torque of 800 ft-lbs, this product is designed to withstand the toughest jobs. And with its sleek black oxide finish and durable alloy steel material, this 40 lb hoist ring is built to last. Don't settle for anything less than the best - choose ACTEK for all of your lifting and rigging needs!

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

ACTEK AK44404 24,000 LBS SWIVEL ROUND PLATE HOIST RING THREAD SIZE: 1 1/2 200% PROOF-LOAD TESTED W/SERIAL #



High Strength Alloy screws must be used.
Both UNC and Coil available.
  • Swivel 360° and pivots 180°.
  • Direct mounting.
  • Wide round base helps distribute shear loads.
  • Alloy Steel
  • Magnetic Particle Inspected.
  • Rated load capacities from 2500 lbs. to 20000 lbs.
  • Many OEM applications.
  • Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
  • Safety Factor : 5:1.
    Note :Thread engagement should be 1 1/2 times the diameter of the equivalent of Grade 8 Alloy Screw.

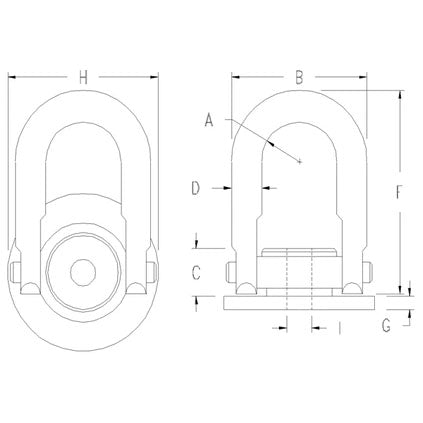

Part Number Rated Load A B C D F G H Thread or Hole (I) Torque Weight
44404 24,000 lbs 2.25 in 8 in 2 3/8 in 1 3/4 in 12 in 1/2 in 8 1/2 in 1 1/2 in 800 ft-lbs 40 lbs
