Brand: Actek
ACTEK AK42404 20,000 LBS SPEED BASE FORGED HOIST RING 1-1/2-6 E=3-1/4 200% PROOF-LOAD TESTED W/SERIAL #
SKU: AK-AK42404
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
ACTEK AK42404 20,000 LBS SPEED BASE FORGED HOIST RING 1-1/2-6 E=3-1/4 200% PROOF-LOAD TESTED W/SERIAL #Manufacturer: Actek Manufacturing & Engineering; Part Number: 42404; Description: Speed Base; Rated Load; Thread Size: 1 1/2"-6; Thread Projection: 3 1/4; Swivel Angle: 360°; Pivot Angle: 180°; Safety Factor: 5:1; Torque: No torque wrench required. Just spin the base down flush and tap one of the lugs to tighten. Material: Alloy Steel; Finish: Black Oxide|Cadmium Plated
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK42404 20,000 LBS SPEED BASE FORGED HOIST RING 1-1/2-6 E=3-1/4 200% PROOF-LOAD TESTED W/SERIAL #
This hoist ring is for users that install and remove lift rings repeatedly.
Tap the lugs with a small hammer or ‚¬œtapper to make sure base is tight on the surface of the object being lifted.

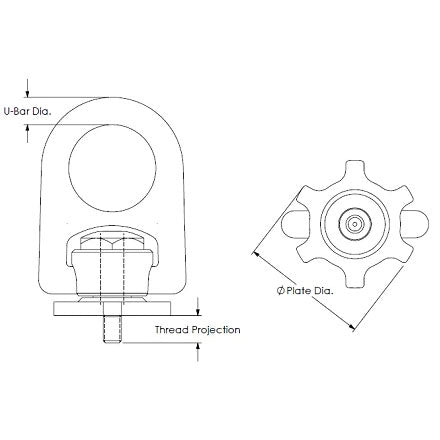

Part Number | Rated Load (lbs) | Thread Size | Thread Projection | U-Bar Dia. | Plate Dia. |
---|---|---|---|---|---|
42404 | 20,000 | 1 1/2"-6 | 3 1/4 | 1 1/4 | 7 |
