Brand: Actek

ACTEK AK41606 6,500 LBS EXT. SAFETY SWIVEL HOIST RING LONG BAR 1-8, 1-1/2 THREAD PROJ. 200% PROOF LOAD TESTED W/SERIAL #

SKU: AK-AK41606
MPN: AK41606

$203.41
Unit price per
Save $24.87

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

ACTEK AK41606 6,500 LBS EXT. SAFETY SWIVEL HOIST RING LONG BAR 1-8, 1-1/2 THREAD PROJ. 200% PROOF LOAD TESTED W/SERIAL #
Manufacturer: Actek Manufacturing & Engineering; Part Number: 41606; Description: Long U-Bar; Thread Size: 1" - 8; Thread Length: 1.53 in; Rated Load: 6,500 lbs; U-bar Radius: .92 in; U-bar Height: 3.86 in; U-bar Diameter: 3/4 in; Bushing Head Diameter: 1.99 in; Swivel Angle: 360°; Pivot Angle: 180°; Safety Factor: 5:1; Torque: 230 ft-lbs; Weight: 3 lbs; Material: Alloy Steel; Finish: Black Oxide per MIL Specification (Cadmium Plated Available); Replacement Screw P/N: 46313

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

ACTEK AK41606 6,500 LBS EXT. SAFETY SWIVEL HOIST RING LONG BAR 1-8, 1-1/2 THREAD PROJ. 200% PROOF LOAD TESTED W/SERIAL #

Manufacturer: Actek Manufacturing & Engineering

Part Number: 41606

Description: Long U-Bar

Thread Size: 1" - 8

Thread Length: 1.53 in

Rated Load: 6,500 lbs

U-bar Radius: .92 in

U-bar Height: 3.86 in

U-bar Diameter: 3/4 in

Bushing Head Diameter: 1.99 in

Swivel Angle: 360°

Pivot Angle: 180°

Safety Factor: 5:1

Torque: 230 ft-lbs

Weight: 3 lbs

Material: Alloy Steel

Finish: Black Oxide per MIL Specification (Cadmium Plated Available)

Replacement Screw P/N: 46313

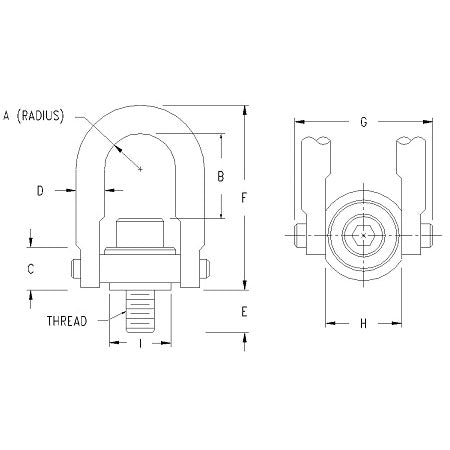

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
41606	1" - 8	1.53 in	6,500 lbs	.92 in	3.86 in	1.25 in	3/4 in	6.85 in	3.66 in	1.98 in	230 ft-lbs	3 lbs	46313	1.99 in
