Brand: Actek
ACTEK AK41434 2-1/2-4 SHOULDER EYE BOLT SHANK LENGTH 5 56,000 LBS WLL BLACK OXIDE FINISH
SKU: AK-AK41434
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Transform your lifting capabilities with the powerful ACTEK AK41434 Shoulder Eye Bolt. With a 2-1/2-4 thread and shank length of 5 inches and a rated load of 56,000 pounds, this bolt is built to take on even the toughest tasks. Its black oxide finish adds a touch of sleekness, making it a must-have for any industrial setting. Trust the quality and reliability of Actek Manufacturing & Engineering with part number 41434. Experience the difference in performance and strength, order now!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK41434 2-1/2-4 SHOULDER EYE BOLT SHANK LENGTH 5 56,000 LBS WLL BLACK OXIDE FINISH
- Rated Capacity is for straight lifts. Angle lifts should be avoided.
- Load limits are reduced by 75% on angle lifts.
- The shoulder must be mounted flush to lifting surface.

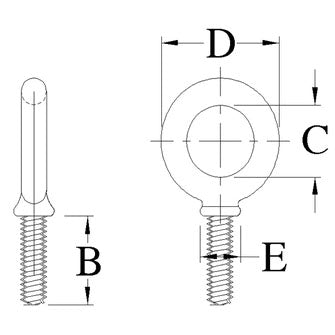

| Part Number | Rated Load | Thread Size | Eye ID (C) | Shank Length (B) | Eye OD (D) | Collar Diameter (E) |
|---|---|---|---|---|---|---|
| 41434 | 56,000 lbs | 2 1/2" - 4 | 4 in | 5 in | 8 9/16 in | 3 3/4 in |
