Brand: Actek
ACTEK AK41433 2-4-1/2 SHOULDER EYEBOLT SHANK LENGTH 4 38,000 LBS WLL BLACK OXIDE FINISH
SKU: AK-AK41433
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
This incredible ACTEK AK41433 2-4-1/2 SHOULDER EYEBOLT boasts a shank length of 4 inches and an impressive workload limit of 38,000 lbs. Its sleek black oxide finish adds a touch of sophistication to its sturdy construction. With a thread size of 2" - 4 1/2 and a collar diameter of 2 7/8 inches, this shoulder eye bolt is a must-have for any heavy-duty project. Put your trust in Actek Manufacturing & Engineering and elevate your productivity to new heights.
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK41433 2-4-1/2 SHOULDER EYEBOLT SHANK LENGTH 4 38,000 LBS WLL BLACK OXIDE FINISH
- Rated Capacity is for straight lifts. Angle lifts should be avoided.
- Load limits are reduced by 75% on angle lifts.
- The shoulder must be mounted flush to lifting surface.

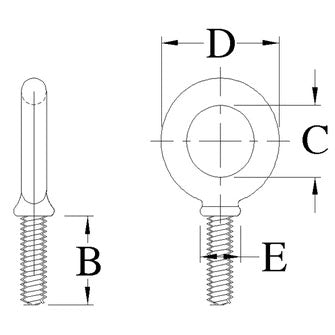

| Part Number | Rated Load | Thread Size | Eye ID (C) | Shank Length (B) | Eye OD (D) | Collar Diameter (E) |
|---|---|---|---|---|---|---|
| 41433 | 38,000 lbs | 2" - 4 1/2 | 3 1/4 in | 4 in | 6 7/8 in | 2 7/8 in |
