Brand: Actek
ACTEK AK41425 1-3/8 SHOULDER EYEBOLT SHANK LENGTH 3-1/2 15,000 LBS WLL BLACK OXIDE FINISH
SKU: AK-AK41425
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the high-quality ACTEK AK41425 1-3/8 Shoulder Eyebolt with a shank length of 3-1/2 inches and a 15,000 lbs weight load limit. This eye-catching black oxide finish adds a sleek touch to the strong and durable c1030 material. Don't miss out on the superior performance of this product from Actek Manufacturing & Engineering.
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK41425 1-3/8 SHOULDER EYEBOLT SHANK LENGTH 3-1/2 15,000 LBS WLL BLACK OXIDE FINISH
- Rated Capacity is for straight lifts. Angle lifts should be avoided.
- Load limits are reduced by 75% on angle lifts.
- The shoulder must be mounted flush to lifting surface.

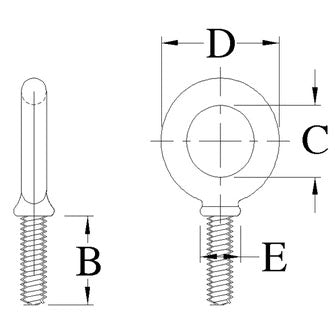

| Part Number | Rated Load | Thread Size | Eye ID (C) | Shank Length (B) | Eye OD (D) | Collar Diameter (E) |
|---|---|---|---|---|---|---|
| 41425 | 15,000 lbs | 1 3/8" - 6 | 2 1/2 in | 3 1/2 in | 5 3/16 in | 2 3/16 in |
