Brand: Actek
ACTEK AK41421 1-1/8-7 SHOULDER EYEBOLT SHANK LENGTH 2-3/4 12,000 LBS WLL BLACK OXIDE FINISH
SKU: AK-AK41421
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the extraordinary ACTEK AK41421 1-1/8-7 SHOULDER EYEBOLT with a shank length of 2-3/4 and a whopping 12,000 lbs rated load! Made with high quality c1030 material and finished with a sleek black oxide, this eye bolt from Actek Manufacturing & Engineering is a must-have for any industrial setting. Trust in the durability and strength of this product and make a confident purchase today!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK41421 1-1/8-7 SHOULDER EYEBOLT SHANK LENGTH 2-3/4 12,000 LBS WLL BLACK OXIDE FINISH
- Rated Capacity is for straight lifts. Angle lifts should be avoided.
- Load limits are reduced by 75% on angle lifts.
- The shoulder must be mounted flush to lifting surface.

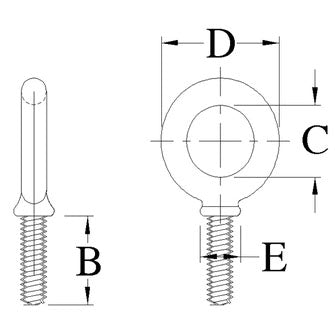

| Part Number | Rated Load | Thread Size | Eye ID (C) | Shank Length (B) | Eye OD (D) | Collar Diameter (E) |
|---|---|---|---|---|---|---|
| 41421 | 12,000 lbs | 1 1/8" - 7 | 2 in | 2 3/4 in | 4 in | 1 11/16 in |
