Brand: Actek
ACTEK AK41419 1-8 SHOULDER EYEBOLT SHANK LENGTH 2-1/2 9,000 LBS WLL BLACK OXIDE FINISH
SKU: AK-AK41419
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the versatile and reliable ACTEK AK41419 1-8 SHOULDER EYEBOLT SHANK LENGTH 2-1/2 9,000 LBS WLL BLACK OXIDE FINISH, brought to you by Actek Manufacturing & Engineering. Part Number 41419 boasts impressive features, including a 1-inch thread size, 2 1/2 inch shank length, and a massive 9,000 lbs rated load. Designed with top-quality c1030 material and finished with a sleek black oxide finish, this Shoulder Eye Bolt is essential for any industrial application. Don't miss out on this must-have product - order now and experience the power and strength of the ACTEK AK41419 1-8 SHOULDER EYEBOLT SHANK LENGTH 2-1/2 9,000 LBS WLL BLACK OXIDE FINISH!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK41419 1-8 SHOULDER EYEBOLT SHANK LENGTH 2-1/2 9,000 LBS WLL BLACK OXIDE FINISH
- Rated Capacity is for straight lifts. Angle lifts should be avoided.
- Load limits are reduced by 75% on angle lifts.
- The shoulder must be mounted flush to lifting surface.

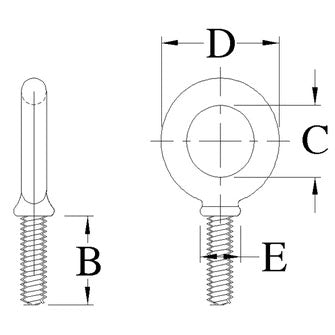

| Part Number | Rated Load | Thread Size | Eye ID (C) | Shank Length (B) | Eye OD (D) | Collar Diameter (E) |
|---|---|---|---|---|---|---|
| 41419 | 9,000 lbs | 1" - 8 | 1 13/16 in | 2 1/2 in | 3 9/16 in | 1 9/16 in |
