Brand: Actek
ACTEK AK41417 7/8-9 SHOULDER EYEBOLT SHANK LENGTH 2-1/4 7,000 LBS WLL BLACK OXIDE FINISH
SKU: AK-AK41417
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the unmatched quality and strength of the ACTEK AK41417 7/8-9 SHOULDER EYEBOLT. With a shank length of 2-1/4 inches and a 7,000 lbs rated load, this eye bolt is perfect for any heavy-duty application. Its sleek black oxide finish not only adds a touch of style, but also provides superior protection against corrosion. Trust Actek Manufacturing & Engineering for all your industrial hardware needs.
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK41417 7/8-9 SHOULDER EYEBOLT SHANK LENGTH 2-1/4 7,000 LBS WLL BLACK OXIDE FINISH
- Rated Capacity is for straight lifts. Angle lifts should be avoided.
- Load limits are reduced by 75% on angle lifts.
- The shoulder must be mounted flush to lifting surface.

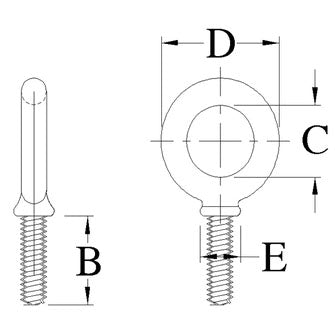

| Part Number | Rated Load | Thread Size | Eye ID (C) | Shank Length (B) | Eye OD (D) | Collar Diameter (E) |
|---|---|---|---|---|---|---|
| 41417 | 7,000 lbs | 7/8" - 9 | 1 11/16 in | 2 1/4 in | 3 1/4 in | 1 7/16 in |
