Brand: Actek
ACTEK AK41413 5/8-11 SHOULDER EYEBOLT SHANK LENGTH 1-3/4 4,000 LBS WLL BLACK OXIDE FINISH
SKU: AK-AK41413
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Transform any heavy duty task with the ACTEK AK41413 5/8-11 SHOULDER EYEBOLT. With a 1-3/4 inch shank length and a strong 4,000 lbs weight load capacity, this black oxide finished eye bolt from Actek Manufacturing & Engineering is a must-have for any job. The 5/8"-11 thread size, 1 3/8" eye inner diameter, 2 1/2" eye outer diameter, and 1 1/16" collar diameter make it the perfect choice for any heavy lifting or rigging needs. Trust in the reliable c1030 material and let this shoulder eye bolt elevate your work to new heights.
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK41413 5/8-11 SHOULDER EYEBOLT SHANK LENGTH 1-3/4 4,000 LBS WLL BLACK OXIDE FINISH
- Rated Capacity is for straight lifts. Angle lifts should be avoided.
- Load limits are reduced by 75% on angle lifts.
- The shoulder must be mounted flush to lifting surface.

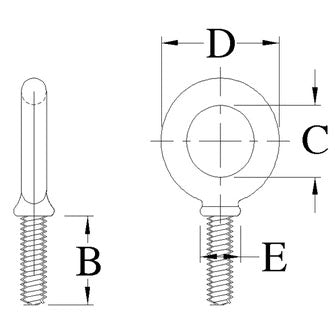

| Part Number | Rated Load | Thread Size | Eye ID (C) | Shank Length (B) | Eye OD (D) | Collar Diameter (E) |
|---|---|---|---|---|---|---|
| 41413 | 4,000 lbs | 5/8" - 11 | 1 3/8 in | 1 3/4 in | 2 1/2 in | 1 1/16 in |
