Brand: Actek

ACTEK AK41411 9/16-12 SHOULDER EYEBOLT SHANK LENGTH 1-5/8 3,000 LBS WLL BLACK OXIDE FINISH

SKU: AK-AK41411
MPN: AK41411

$13.15
Unit price per
Save $0.98

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

ACTEK AK41411 9/16-12 SHOULDER EYEBOLT SHANK LENGTH 1-5/8 3,000 LBS WLL BLACK OXIDE FINISH
Manufacturer: Actek Manufacturing & Engineering; Part Number: 41411; Description: Shoulder Eye Bolt; Thread Size: 9/16" - 12; Shank Length: 1 5/8 in; Rated Load: 3,000 lbs; C (Eye ID): 1 9/32 in; D (Eye OD): 2 9/32 in; Collar Diameter (E): 31/32 in; Material: c1030; Finish: Black Oxide|Plain Oxide

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

ACTEK AK41411 9/16-12 SHOULDER EYEBOLT SHANK LENGTH 1-5/8 3,000 LBS WLL BLACK OXIDE FINISH

Manufacturer: Actek Manufacturing & Engineering

Part Number: 41411

Description: Shoulder Eye Bolt

Thread Size: 9/16" - 12

Shank Length: 1 5/8 in

Rated Load: 3,000 lbs

C (Eye ID): 1 9/32 in

D (Eye OD): 2 9/32 in

Collar Diameter (E): 31/32 in

Material: c1030

Finish: Black Oxide|Plain Oxide

Rated Capacity is for straight lifts. Angle lifts should be avoided.
Load limits are reduced by 75% on angle lifts.
The shoulder must be mounted flush to lifting surface.

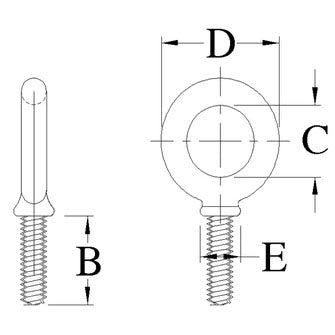

Part Number	Rated Load	Thread Size	Eye ID (C)	Shank Length (B)	Eye OD (D)	Collar Diameter (E)
41411	3,000 lbs	9/16" - 12	1 9/32 in	1 5/8 in	2 9/32 in	31/32 in
