Brand: Actek
ACTEK AK41407 7/16-14 SHOULDER EYEBOLT SHANK LENGTH 1-3/8 1,800 LBS WLL BLACK OXIDE FINISH
SKU: AK-AK41407
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
This incredible product, the ACTEK AK41407, is a shoulder eye bolt with a shank length of 1-3/8 inches and a 1,800 lb rated load. It features a 7/16-14 thread size and a dynamic black oxide finish. Made by Actek Manufacturing & Engineering, this eye bolt is constructed of c1030 material and has an eye ID of 1-3/32 inches and an eye OD of 1-27/32 inches. Its collar diameter measures 25/32 inches, making it a strong and durable choice for all your lifting needs.
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK41407 7/16-14 SHOULDER EYEBOLT SHANK LENGTH 1-3/8 1,800 LBS WLL BLACK OXIDE FINISH
- Rated Capacity is for straight lifts. Angle lifts should be avoided.
- Load limits are reduced by 75% on angle lifts.
- The shoulder must be mounted flush to lifting surface.

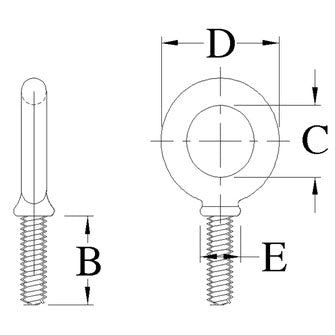

| Part Number | Rated Load | Thread Size | Eye ID (C) | Shank Length (B) | Eye OD (D) | Collar Diameter (E) |
|---|---|---|---|---|---|---|
| 41407 | 1,800 lbs | 7/16" - 14 | 1 3/32 in | 1 3/8 in | 1 27/32 in | 25/32 in |
