Brand: Actek
ACTEK AK41326 M45X4.5 SHOULDER EYEBOLT SHANK LENGTH 95 MM 12,720 KGS WLL BLACK OXIDE FINISHED
SKU: AK-AK41326
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
ACTEK AK41326 M45X4.5 SHOULDER EYEBOLT SHANK LENGTH 95 MM 12,720 KGS WLL BLACK OXIDE FINISHED
This ACTEK® AK41326 M45X4.5 Shoulder Eye Bolt offers lift capacity of up to 12,720 KGS! Its 95mm shank length is crafted from black oxide finished c1030 material and heat treated to ensure strength and durability. Perfect for straight lifts, but take caution with angle lifts to ensure a safe and secure lift. Make sure the shoulder is mounted flush to the lifting surface for optimal performance.
Full Description
ACTEK AK41326 M45X4.5 SHOULDER EYEBOLT SHANK LENGTH 95 MM 12,720 KGS WLL BLACK OXIDE FINISHED
Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 41326
Description: Metric Shoulder Eye Bolt
W.L.L. Vert 0: 12,720 kg
Thread Size: M45 x 4.5

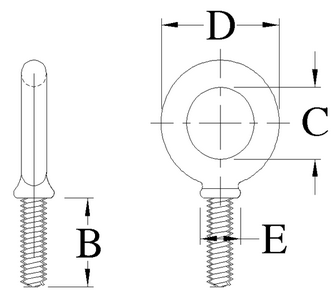

B: 3 3/4 in
C: 2 7/8 in
D: 6 1/16 in
E: 2 1/2 in
Material: c1030
Finish: Plain or Black Oxide
Heat Treat: Quench & Draw
Note: Stainless Steel available. Longer thread lengths and fine threads available.
Caution: Rated capacity is for straight lifts. Angle lifts should be avoided. Load limits are reduced by 75% on angle lifts. The shoulder must be mounted flush to lifting surface.
| Part Number | W.L.L. Vert 0 | Thread Size | B | C | D | E |
| 41326 | 12,720 kg | M45 x 4.5 | 3 3/4 in | 2 7/8 in | 6 1/16 in | 2 1/2 in |
