Brand: Actek
ACTEK AK41322 M36X4.0 SHOULDER EYEBOLT SHANK LENGTH 89 MM 8,970 KGS WLL BLACK OXIDE FINISHED
SKU: AK-AK41322
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
ACTEK AK41322 M36X4.0 SHOULDER EYEBOLT SHANK LENGTH 89 MM 8,970 KGS WLL BLACK OXIDE FINISHED
ACTECK AK41322 M36X40 Shoulder Eye Bolt is the perfect solution for heavy loads, with a WLL of 8,970 kg and a shank length of 89 mm. Crafted with c1030 material, this bolt can be finished in plain or black oxide, and also comes with a heat treat of quench and draw. Enjoy added security from the angled lifting capacity reduction of 75%.
Full Description
ACTEK AK41322 M36X4.0 SHOULDER EYEBOLT SHANK LENGTH 89 MM 8,970 KGS WLL BLACK OXIDE FINISHED
Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 41322
Description: Metric Shoulder Eye Bolt
W.L.L. Vert 0: 8,970 kg
Thread Size: M36 x 4.0

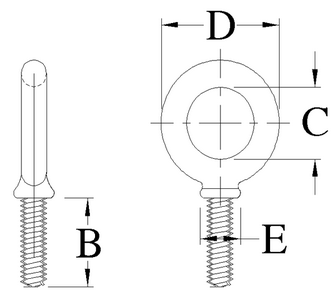

B: 3 1/2 in
C: 2 1/2 in
D: 5 3/16 in
E: 2 3/16 in
Material: c1030
Finish: Plain or Black Oxide
Heat Treat: Quench & Draw
Note: Stainless Steel available. Longer thread lengths and fine threads available.
Caution: Rated capacity is for straight lifts. Angle lifts should be avoided. Load limits are reduced by 75% on angle lifts. The shoulder must be mounted flush to lifting surface.
| Part Number | W.L.L. Vert 0 | Thread Size | B | C | D | E |
| 41322 | 8,970 kg | M36 x 4.0 | 3 1/2 in | 2 1/2 in | 5 3/16 in | 2 3/16 in |
