Brand: Actek
ACTEK AK41320 M30X3.5 SHOULDER EYEBOLT SHANK LENGTH 76 MM 6,400 KGS WLL BLACK OXIDE FINISHED
SKU: AK-AK41320
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
ACTEK AK41320 M30X3.5 SHOULDER EYEBOLT SHANK LENGTH 76 MM 6,400 KGS WLL BLACK OXIDE FINISHED
Reach new heights with this heavy-duty ACTEK® AK41320 Shoulder Eye Bolt with an impressive 6,400 kgs WLL capacity! The black oxide finish ensures durability and a stylish touch, while the c1030 material and quench & draw heat-treating make it a reliable tool for any job. Perfect for straight lifts!
Full Description
ACTEK AK41320 M30X3.5 SHOULDER EYEBOLT SHANK LENGTH 76 MM 6,400 KGS WLL BLACK OXIDE FINISHED
Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 41320
Description: Metric Shoulder Eye Bolt
W.L.L. Vert 0: 6,400 kg
Thread Size: M30 x 3.5

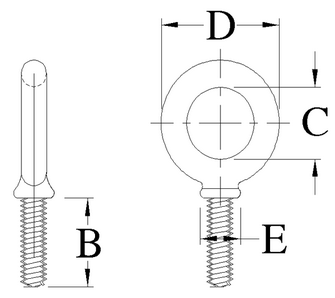

B: 3 in
C: 2 3/16 in
D: 4 7/16 in
E: 1 7/8 in
Material: c1030
Finish: Plain or Black Oxide
Heat Treat: Quench & Draw
Note: Stainless Steel available. Longer thread lengths and fine threads available.
Caution: Rated capacity is for straight lifts. Angle lifts should be avoided. Load limits are reduced by 75% on angle lifts. The shoulder must be mounted flush to lifting surface.
| Part Number | W.L.L. Vert 0 | Thread Size | B | C | D | E |
| 41320 | 6,400 kg | M30 x 3.5 | 3 in | 2 3/16 in | 4 7/16 in | 1 7/8 in |
