Brand: Actek
ACTEK AK41302 M10X1.5 SHOULDER EYEBOLT SHANK LENGTH 35MM 740 KGS WLL BLACK OXIDE FINISHED
SKU: AK-AK41302
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Attention all buyers, the ACTEK AK41302 M10X1.5 SHOULDER EYEBOLT with a shank length of 35mm and a staggering 740 kg WLL is here to elevate your lifting needs! This incredible black oxide finished product is crafted by Actek Manufacturing & Engineering, a trusted name in the industry. Made with high-quality c1030 material, this metric shoulder eye bolt features a M10 x 1.5 thread size, 1 3/32 in C (eye ID), and 1 27/32 in D (eye OD). The collar diameter (E) measures 25/32 in, making it the perfect addition to your lifting equipment. Don't miss out on this powerful and reliable product that will surely impress any passionate buyer!
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
ACTEK AK41302 M10X1.5 SHOULDER EYEBOLT SHANK LENGTH 35MM 740 KGS WLL BLACK OXIDE FINISHED
- Rated Capacity is for straight lifts. Angle lifts should be avoided.
- Load limits are reduced by 75% on angle lifts.
- The shoulder must be mounted flush to lifting surface.

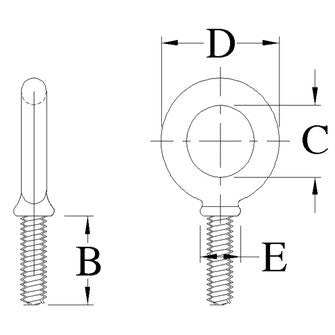

| Part Number | Rated Load | Thread Size | Eye ID (C) | Shank Length (B) | Eye OD (D) | Collar Diameter (E) |
|---|---|---|---|---|---|---|
| 41302 | 740 kg | M10 x 1.5 | 1 3/32 in | 1 3/8 in | 1 27/32 in | 25/32 in |
