Brand: Iscar

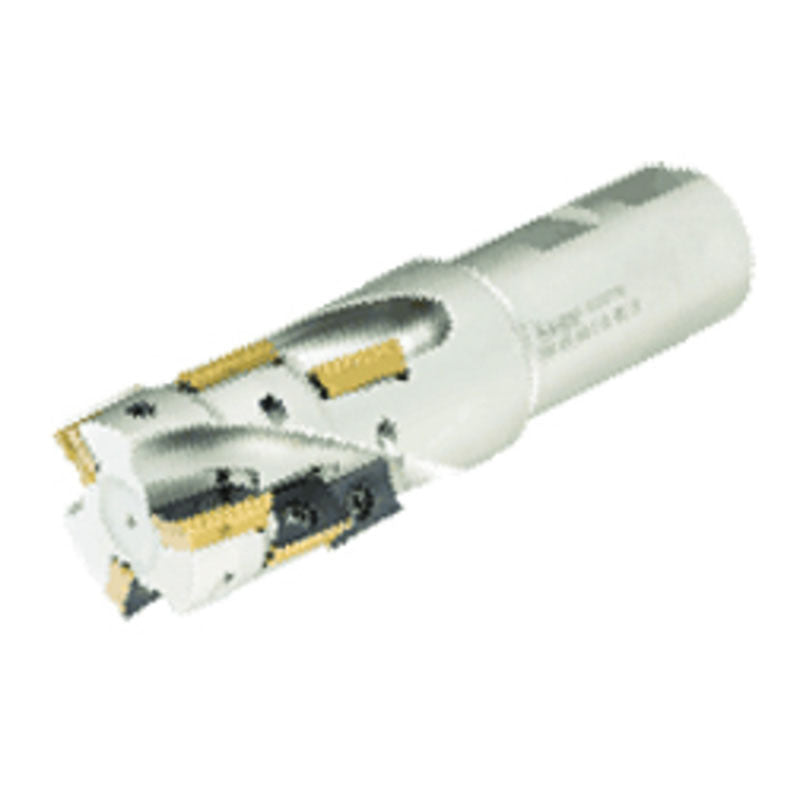

Iscar EH3110803 P290 ACK2.0-3-6.3-W200-18
SKU: FTS-EH3110803
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3110803 P290 ACK2.0-3-6.3-W200-18Full Description
| Application | | Rampdown | Shouldering | | Cutting Depth | 7.28" |
| Cutting Item Count (CICT) | 27 | Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |
| Depth of Cut Maximum (APMX) | 6.3" | Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter (DC) | 2" | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 2" | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 10.63" | Tool Type | 90° Extended flute endmills |
| Cutting Length | 6.3" | Connection Code Machine Side (CCMS) | Weldon |
Family Description
Extended flute endmills carrying .472 and .708" long edged inserts.
Note: recommended ae up to 0.2xD
