ACE Controls TR86-45H Profile Dampers 148-0020

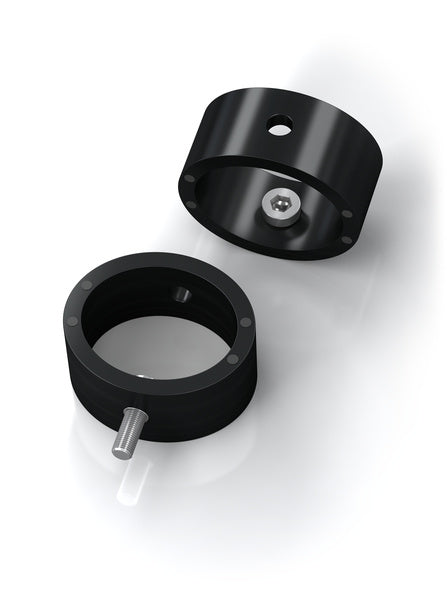

Profile Dampers
TR86-45H Compact size with soft deceleration and high energy absorption Radial Damping, Hard Version
Energy capacity 1,097 in-lbs/cycle
Stroke max. 1.77 inch
Harder mixture of materials for higher energy absorption: The maintenance-free and ready-to-install TR-H profile dampers, are stressed radially in the same way as the basic TR model. With almost the same dimensions, they also decelerate with a very long and soft action. The harder co-polyester elastomer mixture leads to significantly high energy absorption of 23.9 in-lbs to 3,779 in-lbs (2.7 Nm to 427 Nm) in these models. The supplied special screw makes them easy to mount.
The TR-H product family is space-saving with dimensions of Ø 1.18"ACE Controls TR86-45H Profile Dampers 148-0020" to Ø 4.02"ACE Controls TR86-45H Profile Dampers 148-0020" (Ø 30 mm to Ø 102 mm). It complements the TUBUS range between the progressive TR and almost linear TS models. Users are therefore provided with a full range of deceleration curves within the ACE TUBUS family.

Stroke max.: 1.77 inch

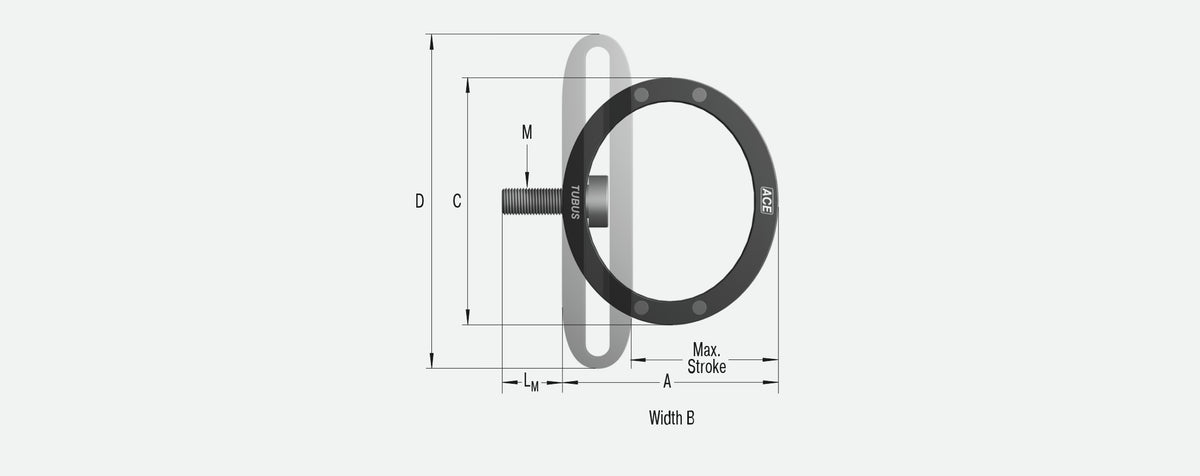

A: 2.72 inch
B: 2.01 inch
C: 3.39 inch
D: 4.29 inch
M: M6 inch
L_M: 0.24 inch

Energy capacity: 1,097 in-lbs/cycle
Energy capacity emergency use: 1,823 in-lbs/cycle
Energy absorption: 39 % to 62 %
Dynamic force range: 124 lbs to 4,766 lbs
Operating temperature range: -40 °F to 194 °F
Construction size: 1.18 in to 4.01 in
Mounting: In any position
Material hardness rating: Shore 55D Shore
Material: Profile body: Co-Polyester Elastomer
Environment: Resistant to microbes, seawater or chemical attack. Excellent UV and ozone resistance. Material does not absorb water or swell.
Impact velocity range: Max. 16.4 ft/sec
Torque max.: M5: 2.21 ft-lbs
M6: 4.43 ft-lbs
M8: 14.75 ft-lbs
