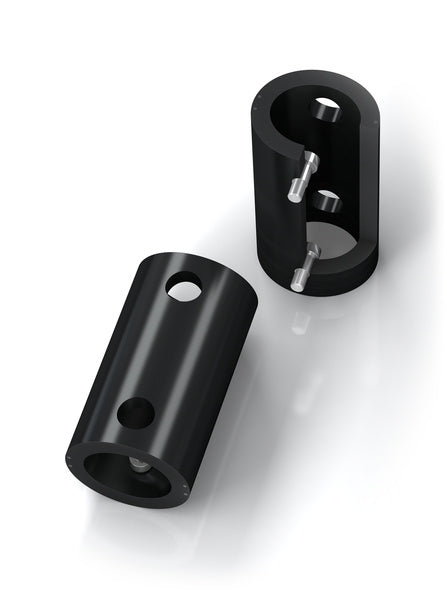

ACE Controls TR66-40L-4 Profile Dampers 148-0035

Profile Dampers
TR66-40L-4 Powerhouse in long body length Radial Damping, Long Version
Energy capacity 3,611 in-lbs/cycle
Stroke max. 1.57 inch
Designed for applications with long and soft deceleration: The ACE TUBUS range TR-L radial tube dampers are maintenance-free, ready-to-install elements made of co-polyester elastomer.
Their radial load offers designers a very long and soft deceleration with a progressive reduction in energy at the end of the stroke. The TR-L range has been specially developed for a maximum stroke with a minimum height and a range of 63.7 in-lbs to 95,411 in-lbs (7.2 Nm to 10,780 Nm). The absorption capacity is dependent on the length of the selected tube damper. These models are available in sizes between Ø 1.14"ACE Controls TR66-40L-4 Profile Dampers 148-0035" and Ø 46.77"ACE Controls TR66-40L-4 Profile Dampers 148-0035". (Ø 29 mm and Ø 188 mm).

Stroke max.: 1.57 inch

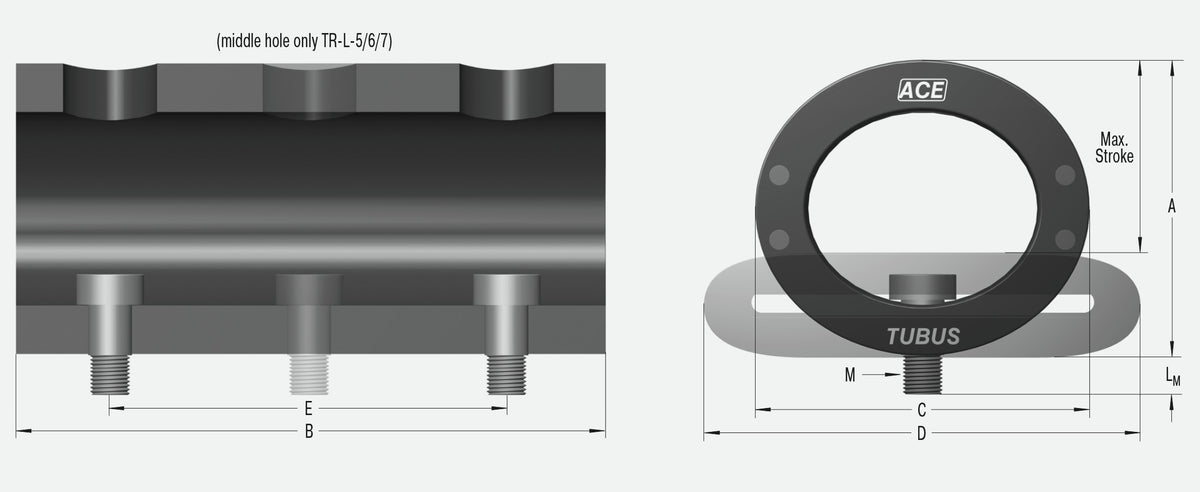

A: 2.32 inch
B: 24.02 inch
C: 2.60 inch
D: 3.43 inch
E: 22.01 inch
M: M8 inch
L_M: 0.31 inch

Energy capacity: 3,611 in-lbs/cycle
Energy capacity emergency use: 5,054 in-lbs/cycle
Energy absorption: 26 % to 41 %
Dynamic force range: 295 lbs to 48,941 lbs
Operating temperature range: -40 °F to 194 °F
Construction size: 1.14 in to 7.40 in
Mounting: In any position
Material hardness rating: Shore 55D Shore
Material: Profile body: Co-Polyester Elastomer
Environment: Resistant to microbes, seawater or chemical attack. Excellent UV and ozone resistance. Material does not absorb water or swell.
Impact velocity range: Max. 16.4 ft/sec
Torque max.: M5: 2.21 ft-lbs
M8: 14.75 ft-lbs
M16: 29.50 ft-lbs (DIN912)
M16: 88.51 ft-lbs (Shouldered screw)
