ACE Controls TR42-14HD Profile Dampers 148-0026
Profile Dampers
TR42-14HD Compact powerhouse in solid material Radial Damping, Heavy Duty Version
Energy capacity 3,585 in-lbs/cycle
Stroke max. 0.58 inch

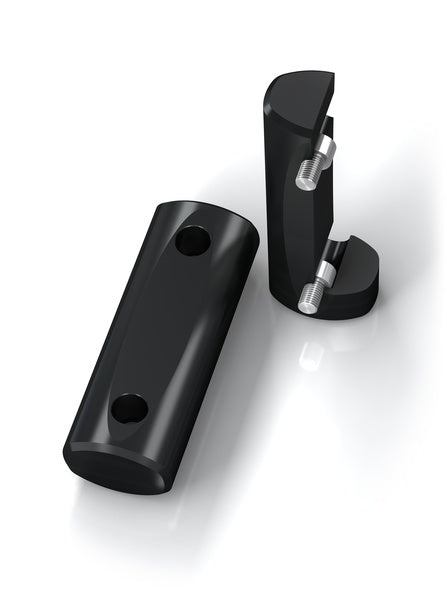

Impact and collision protection: The TR-HD profile dampers are stressed in the same way as the basic model TR but offer a higher force and energy absorption with a shorter damping distance thanks to the solid design. Different damping characteristic curves can be achieved with two different co-polyester elastomer hardness levels. The slightly oval (bi-concave) shape also ensures a softer force intake.
This product family absorbs a lot of energy despite the low height: a range of 3,585 in-lbs to 104,793 in-lbs (405 Nm to 11,840 Nm) is progressively covered by strokes of 0.47"ACE Controls TR42-14HD Profile Dampers 148-0026" to 1.73"ACE Controls TR42-14HD Profile Dampers 148-0026" (12 mm to 44 mm). Delivered with two included screws, the damper can be easily and quickly installed both horizontally or vertically. The drill hole distance can be adapted if required.
Stroke max.: 0.58 inch

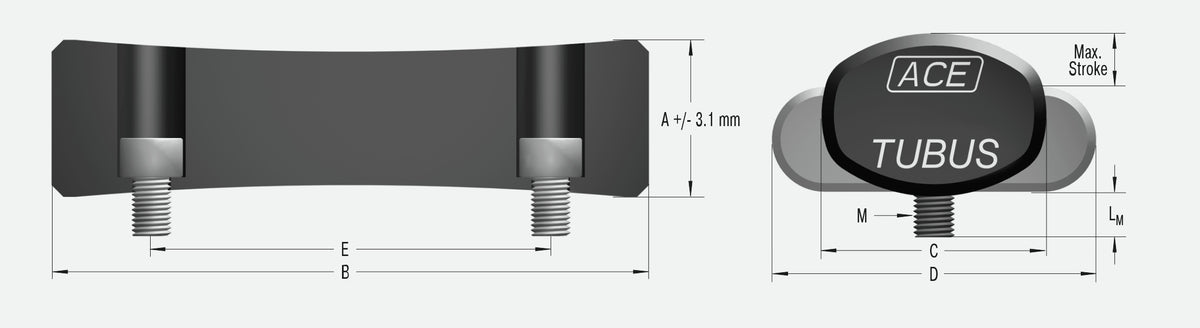

A: 1.33 inch
B: 5.84 inch
C: 1.65 inch
D: 2.31 inch
E: 4.02 inch
M: M10 inch
LM: 0.79 inch
Energy capacity: 3,585 in-lbs/cycle
Energy capacity emergency use: 5,018 in-lbs/cycle
F max. static: 14,365 lbs
Energy absorption: 43 % to 72 %
Dynamic force range: 17,715 lbs to 182,748 lbs
Operating temperature range: -40 °F to 194 °F
Construction size: 1.65 in to 46.29 in
Mounting: In any position
Material hardness rating: Shore 40D, Shore 55D Shore
Material: Profile body: Co-Polyester Elastomer
Environment: Resistant to microbes, seawater or chemical attack. Excellent UV and ozone resistance. Material does not absorb water or swell.
Impact velocity range: Max. 16.4 ft/sec
Torque max.: M10: 5.16 ft-lbs
M12: 8.85 ft-lbs
