Brand: ACE Controls
ACE Controls SL-300-25-D-MP3 Damping Pads
SKU: ACE-SL-300-25-D-MP3
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all ACE Controls product orders*
**All ACE Controls products are made-to-order and will require lead-time if not in stock at manufacturer**
ACE Controls SL-300-25-D-MP3 Damping Pads
Damping Pads
SL-300-25-D-MP3 Energy absorption in pad format Connectable and Combinable
Energy capacity max. 1,858.66 in-lbs/cycle
Stroke 0.49 inch
Tailor made damping material in pad format: SLAB damping pads are made of a viscoelastic PUR-material. They absorb impact loads extremely effectively and are also suitable for insulating or damping vibration.

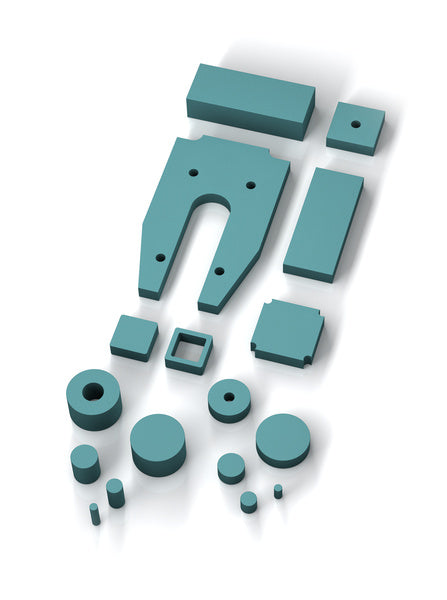

The pads of the product family SL-030 to SL-300 are quickly adapted to the relevant type of application. This is in part achieved through the configuration of the calculating tool or directly by the ACE specialist engineers. Furthermore, this is possible because the standard material can be cut exactly and quickly to any customer requirement with our new cutting system. It is also possible to obtain a sample to find an optimum solution.

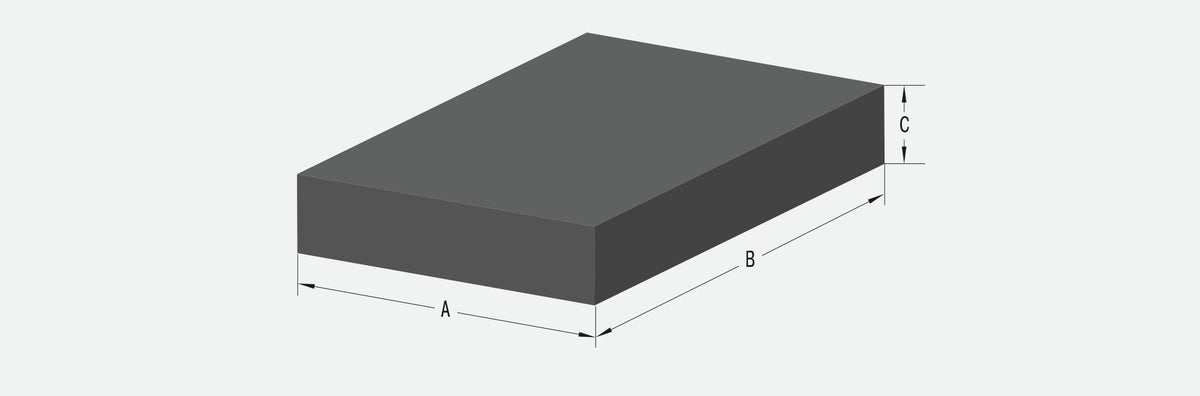

Stroke: 0.49 inch
A: 3.94 inch
B: 3.94 inch
C: 0.98 inch
Energy capacity max.: 1,858.66 in-lbs/cycle
Area: 15.500 inch2
Return Time: 4 s
Standard density: 29.97
Standard colour: Green
Dimensions: Widths: up to 59.1 in
Lengths: up to 196.9 in
Thicknesses: 0.98 in
Environment: Resistant against ozone and UV radiation. Chemical resistancy on request.
Operating temperature range: 23 °F to 122 °F
Material: Profile body: Mixed cellular PUR-Elastomer (polyurethane)
