Brand: ACE Controls
ACE Controls SC300-6 Miniature Shock Absorbers 195-0122
SKU: ACE-SC 300-6
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all ACE Controls product orders*
ACE Controls SC300-6 Miniature Shock Absorbers 195-0122
Miniature Shock Absorbers

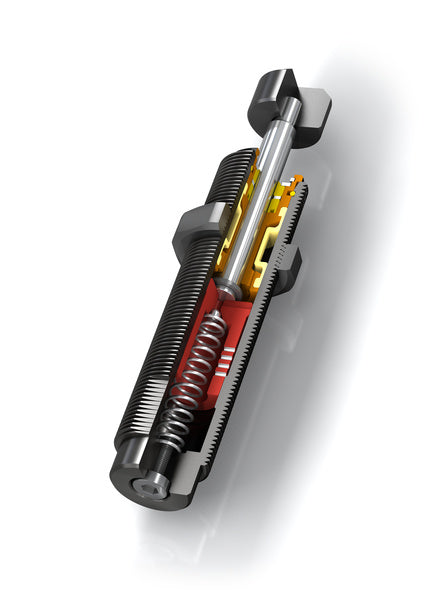

SC300-6 Piston tube design for maximum energy absorption Self-Compensating, Piston Tube Technology
Energy capacity 650 in-lbs/cycle
Stroke 0.59 inch
Added safety with accumulator technology: The larger 'soft contact' models from the SC²300 to SC²650 are available with up to three times the energy absorption compared to similar sizes of standard shock absorbers SC190 to SC925, due to the ACE piston tube specialty. Furthermore, the membrane accumulator serves as a compensation element for the oil displaced in the shock absorber and replaces the standard use of absorber materials. This increases process safety even further.
The shock absorbers, which are perfect for rotary actuators for example, are available in progressively stepped effective weight ranges with an integrated positive stop. They are maintenance-free and ready for direct installation. The side load adapter option allows impact angles of up to 25°. They offer soft contact deceleration where initial impact reaction forces are very low, with the advantages of self-compensation to react to changing energy conditions, without adjustment.
These miniature shock absorbers offer high performance levels with a long service life and are particularly popular for material handling, mounting very close to pivots and automation tasks.

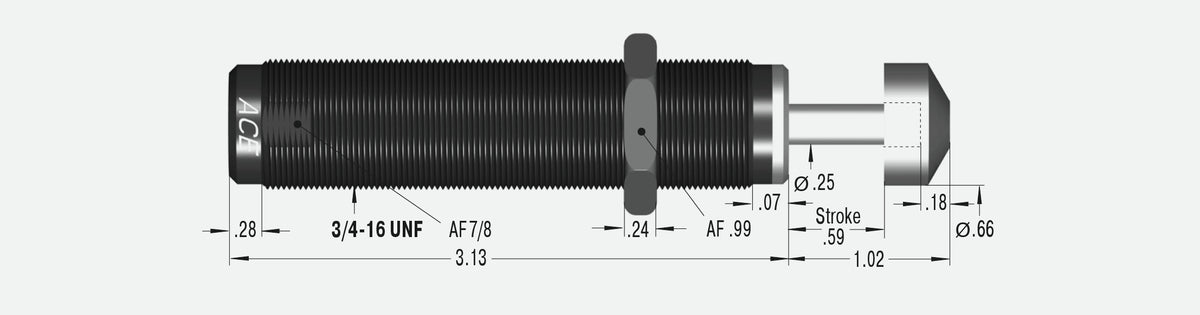

Stroke: 0.59 inch
M: 3/4-16 UNF inch
Energy capacity: 650 in-lbs/cycle
Energy capacity: 400,000 in-lbs/h
Effective weight min.: 75 lbs
Effective weight max.: 300 lbs
Hardness: -6
Return Force min.: 1.70 lbs
Return Force max.: 4.00 lbs
Return Time: 0,2 s
Side Load Angle max.: 5 °
Impact velocity range: 0.30 ft/sec to 12.0 ft/sec
Operating temperature range: 32 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Material: Outer body: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel; Accessories: Hardened steel and corrosion-resistant coating
Damping medium: Oil, temperature stable
