ACE Controls SC300-5-HC Miniature Shock Absorbers 195-0151

Miniature Shock Absorbers
SC300-5-HC Miniature self compensating shocks for high-speed applications Self-Compensating
Energy capacity 650 in-lbs/cycle
Stroke 0.33 inch

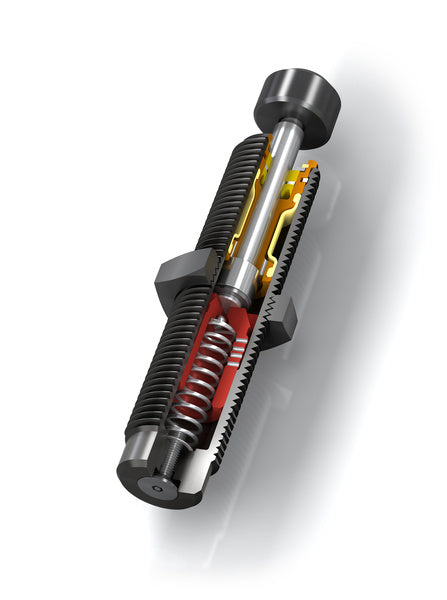

SC25-HC to SC650-HC high cycle shock absorbers are engineered for high-speed equipment applications. These rugged performers are ideal for the packaging industry. They offer a short stroke, quick time through stroke and quick rod-ready time. In addition, these dependable self-compensating miniatures are capable of rapid repeat strokes. The result is faster cycling for your equipment and gains in production time for you.
Self-compensating shock absorbers react to changing energy conditions, without adjustment.
These miniature, self-compensating shock absorbers provide high-speed performance and reliability in a compact footprint. Applications include: Packaging equipment, slides, rotary actuators, small and medium robotics, machine tools, pick and place operations and more.

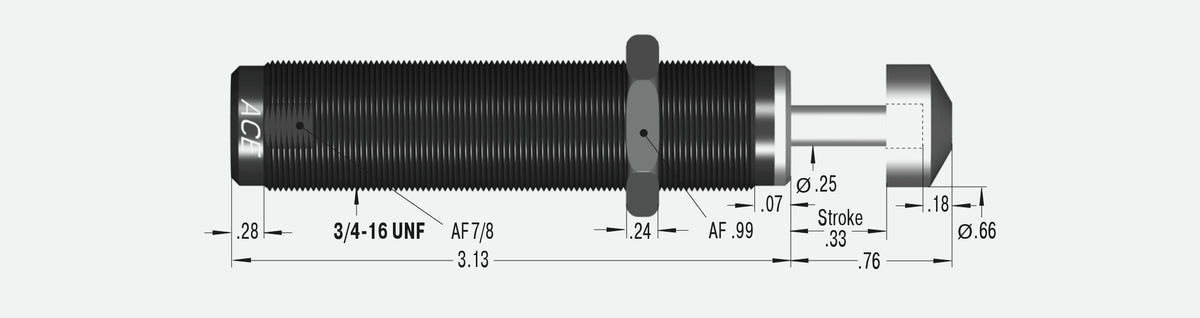

Stroke: 0.33 inch
M: 3/4-16 UNF inch

Energy capacity: 650 in-lbs/cycle
Energy capacity: 400,000 in-lbs/h
Effective weight min.: 25 lbs
Effective weight max.: 100 lbs
Return Force min.: 2.63 lbs
Return Force max.: 3.91 lbs
Return Time: 0,2 s
Side Load Angle max.: 5 °
Impact velocity range: 0.21 ft/sec to 8.79 ft/sec
Operating temperature range: 32 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Material: Outer body: Steel corrosion-resistant coating; Main bearing: Brass; Piston rod: Steel hardened; Locknut, Accessories: Steel; Rolling diaphragm: Rubber (EPDM); Stretch diaphragm: Rubber (nitrile)
Damping medium: SF 96-500 and others
