ACE Controls SALDN3/4X3-RR Industrial Shock Absorbers 3438-43100
Industrial Shock Absorbers
SALDN3/4X3-RR High energy absorption and a wide effective weight range Adjustable
Energy capacity 10,350 in-lbs/cycle
Stroke 2.95 inch

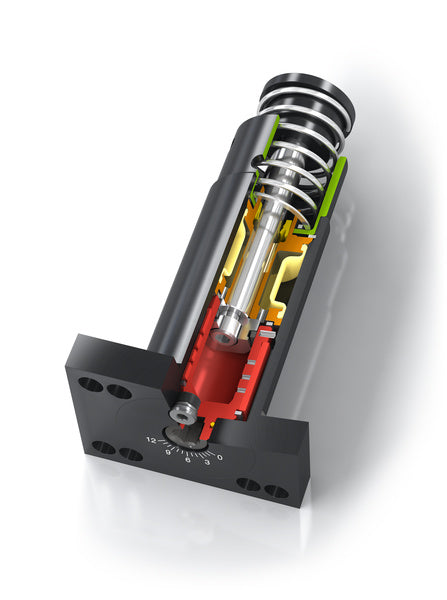

SALDN industrial shock absorbers offer high performance levels and a long service life, even in the most difficult environments. These shock absorbers feature an integrated positive stop and are designed to handle effective weights from 3,450 to 10,350 in-lbs. per cycle.
High energy absorption in a compact design and a wide damping range lead to huge advantages in practice. Alongside generally more compact designs, these small yet very powerful shock absorbers enable full use of the machine’s performance.

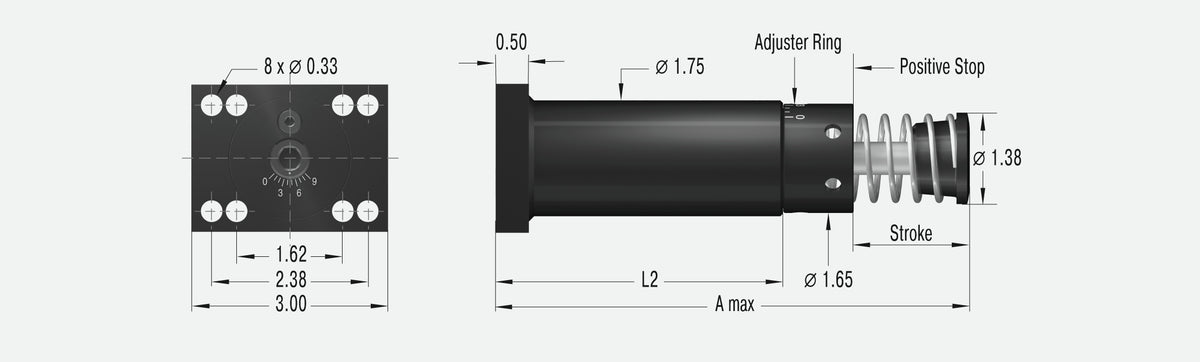

Stroke: 2.95 inch
A max.: 9.69 inch
L2: 5.22 inch
Energy capacity: 10,350 in-lbs/cycle
Energy capacity: 1,300,000 in-lbs/h
Energy capacity with oil recirculation: 2,500,000 in-lbs/h
Energy capacity with air/oil tank: 2,000,000 in-lbs/h
Effective weight min.: 155 lbs
Effective weight max.: 33,000 lbs
Return Force max.: 40.3 lbs
Return Force min.: 11.7 lbs
Return Time: 0.11 s
Side Load Angle max.: 2 °
Impact velocity range: 0.5 ft/sec to 16.5 ft/sec
Operating temperature range: 10 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Adjustment: Rear of shock
Damping medium: Automatic Transmission Fluid (ATF)
