ACE Controls PMCN150M Miniature Shock Absorbers 190-9442
Miniature Shock Absorbers
PMCN150M Reliable protection from fluids and particulate Self-Compensating, Rolling Diaphragm Technology, TPU Bellow
Energy capacity 175 in-lbs/cycle
Stroke 0.5 inch

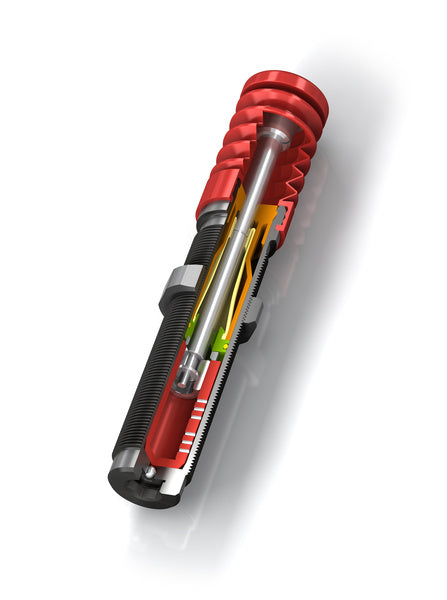

Hermetically sealed: The shock absorbers from the ACE Protection family PMCN have a compact, perfectly sealed cap as a special feature.
This protection bellows, made of TPU (thermoplastic polyurethane), safely encapsulates the proven ACE rolling diaphragm from the outside environment. Aggressive cutting, lubricating and cleaning agents don't stand a chance and the function of the maintenance-free, ready-to-install shock absorber is retained. They are also available in full stainless steel.
The PMCN range is a good alternative to the SP type air bleed collar if no compressed air is available on the machine or system.
Reliable protection against aggressive environments including fluids and abrasives, these self-compensating miniature shock absorbers are the first choice where conventional dampers wear out too quickly. Use them in harsh environments where cutting, cooling or cleaning agents can attack.

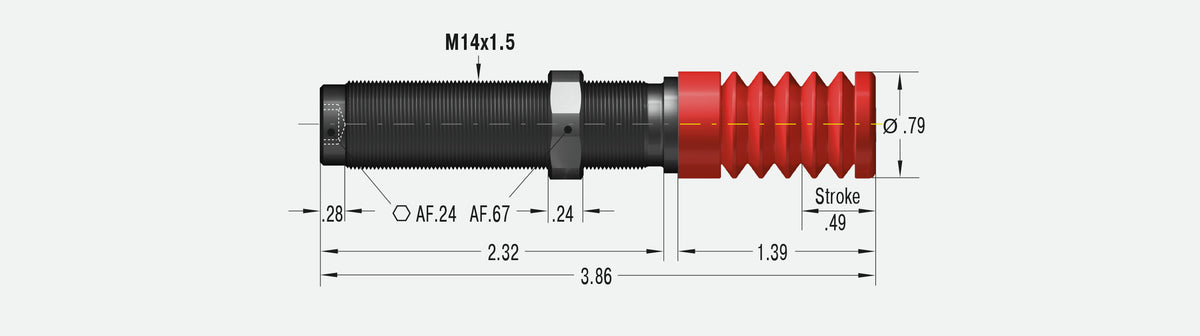

Stroke: 0.5 inch
M: M14x1.5 inch
Energy capacity: 175 in-lbs/cycle
Energy capacity: 300,000 in-lbs/h
Effective weight min.: 2 lbs
Effective weight max.: 22 lbs
Return Force min.: 1.80 lbs
Return Force max.: 17.98 lbs
Return Time: 1.0 s
Side Load Angle max.: 4 °
Impact velocity range: 0.22 ft/sec to 19.7 ft/sec. Other speeds on request.
Operating temperature range: 32 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Material: Outer body: Steel corrosion-resistant coating; Main bearing: Plastic; Piston rod: Hardened stainless steel (1.4125, AISI 440C); Bellow: TPU, steel insert: Stainless steel (1.4404/1.4571, AISI 316L/316Ti); Rolling diaphragm: EPDM
Damping medium: Oil, temperature stable
