ACE Controls MVC900M Hydraulic Feed Controls 127-0102

*Please note, there is a $75 minimum for all ACE Controls product orders*

**All ACE Controls products are made-to-order and will require lead-time if not in stock at manufacturer**

ACE Controls MVC900M Hydraulic Feed Controls 127-0102

Hydraulic Feed Controls
MVC900M Designed for applications with low precision requirements Adjustable
Compression force max. 800 lbs
Stroke 1.58 inch
Many application options: the hydraulic feed controls in models MA and MVC are similar to that of the VC model. However, these hydraulic controls have been designed for applications that require less precision.
There are also plenty of accessories for the MA and MVC models. All products are ready-to-install, maintenance-free, stable in temperature and avoid stick-slip effect. Speeds from 0.47"ACE Controls MVC900M Hydraulic Feed Controls 127-0102"/min. (12 mm/min.) can be driven at a low thrust force using the adjustment screw on the base of the hydraulic control.

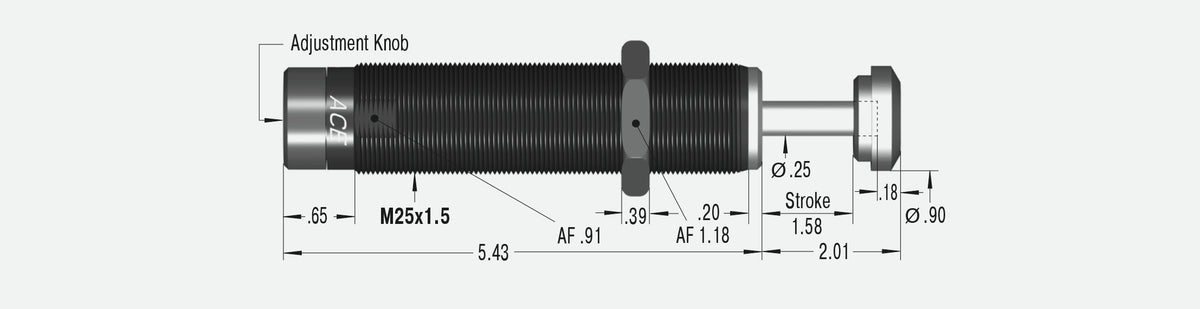

Stroke: 1.58 inch
M: M25x1.5 inch

Compression force min.: 15 lbs
Compression force max.: 800 lbs
Return Force min.: 2.40 lbs
Return Force max.: 7.40 lbs
Return Time: 0.95 s
Side Load Angle max.: 2 °
Compression force: 15 lbs to 800 lbs lbs
Impact velocity range: At speeds of 0.98 ft/sec the maximum allowed energy is approx. 17.70 in-lbs. Where higher energies occur use a shock absorber for the initial impact. Avoid high impact velocities.
Adjustment: Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.
Positive stop: Integrated
Damping medium: Oil, temperature stable
Material: Outer body: Nitride hardened steel; Piston rod: Steel with black oxide finish or nitride hardened
Mounting: In any position
Operating temperature range: 32 °F to 150 °F
