Brand: ACE Controls
ACE Controls MC64150-2-LT Industrial Shock Absorbers 218-0391
SKU: ACE-MC 64150-2-LT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all ACE Controls product orders*

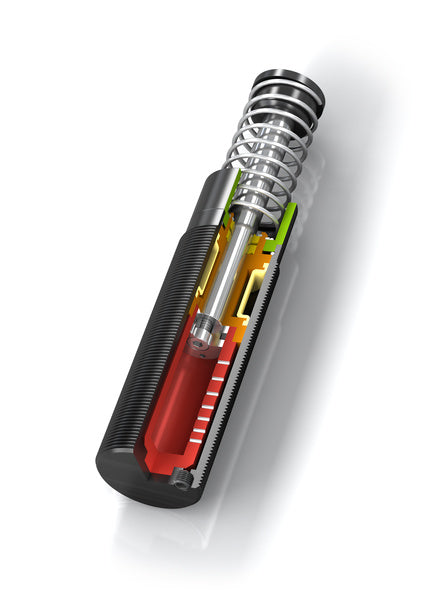

ACE Controls MC64150-2-LT Industrial Shock Absorbers 218-0391
Industrial Shock Absorbers
MC64150-2-LT Extreme temperature Self-Compensating, use at -58 °F to +150 °F
Energy capacity 50,007 in-lbs/cycle
Stroke 5.91 inch
Greater application range: just like all MAGNUM types from the product family MC33 to MC64, the LT (low temperature) industrial shock absorbers are also made from one solid piece. They use special seals and fluids. This means that these versions can even be used at extreme temperatures of -58 °F to +151 °F in order to safely and reliable damp masses and absorb 100 % of the kinetic energy.
These ready-to-install machine elements are recommended even under the most unfavorable conditions. Additional benefits are their robust, innovative sealing technology, high energy absorption in a compact design, fixed positive stop and a wide damping range. Self-compensating shock absorbers react to changing energy conditions, without adjustment.
Stroke: 5.91 inch
A max.: 17.73 inch
L2: 9.5 inch
M: 2-1/2-12 UNF inch
d2: 1.90 inch
Energy capacity: 50,007 in-lbs/cycle
Energy capacity: 2,200,000 in-lbs/h
Energy capacity with oil recirculation: 5,700,000 in-lbs/h
Energy capacity with air/oil tank: 4,400,000 in-lbs/h
Effective weight min.: 3,060 lbs
Effective weight max.: 12,240 lbs
Hardness: -2
Return Force max.: 82.2 lbs
Return Force min.: 16.9 lbs
Return Time: 0,48 s
Return Time at -58 °F: 0,96 s
Side Load Angle max.: 2 °
Impact velocity range: 0.5 ft/sec to 16.5 ft/sec. Other speeds on request.
Operating temperature range: -58 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Material: Outer body: Nitride hardened steel; Piston rod: Hard chrome plated steel; Rod end button: Hardened steel and corrosion-resistant coating; Return spring: Zinc plated or plastic-coated steel; Accessories: Steel with black oxide finish or nitride hardened
Damping medium: Low temperature hydraulic oil
