Brand: ACE Controls
ACE Controls MC64100-3 Industrial Shock Absorbers 218-0007
SKU: ACE-MC 64100-3
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all ACE Controls product orders*
ACE Controls MC64100-3 Industrial Shock Absorbers 218-0007
Industrial Shock Absorbers
MC64100-3 High energy absorption and robust design Self-Compensating
Energy capacity 33,000 in-lbs/cycle
Stroke 3.91 inch

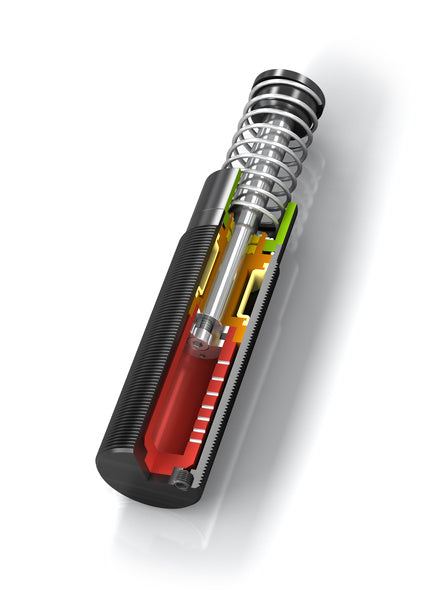

The latest damper technology: The combination of the latest sealing technology, annealed guide bearing and integrated positive stop make these self-compensating shock absorbers from ACE'S MAGNUM range so successful. After all, users benefit from the longer service life of the products, even in the most difficult environments. A continuous outer thread and extensive accessories make their contribution to the success story of the MC33 to MC64.
High energy absorption in a compact design and a wide damping range lead to huge advantages in practice. Alongside generally more compact designs, these small yet very powerful absorbers enable full use of the machine's performance. Self-compensating shock absorbers react to changing energy conditions, without adjustment.

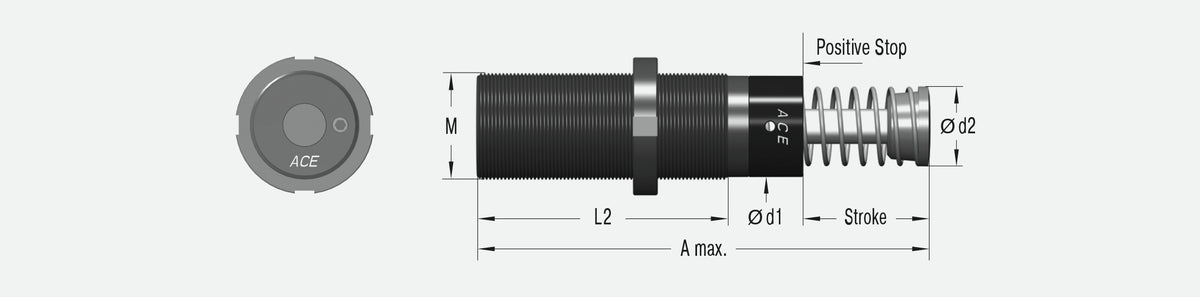

Stroke: 3.91 inch
A max.: 12.85 inch
L2: 7.5 inch
M: 2-1/2-12 UNF inch
d1: 2.37 inch
d2: 1.90 inch
Energy capacity: 33,000 in-lbs/cycle
Energy capacity: 1,700,000 in-lbs/h
Energy capacity with oil recirculation: 4,400,000 in-lbs/h
Energy capacity with air/oil tank: 3,400,000 in-lbs/h
Effective weight min.: 6,920 lbs
Effective weight max.: 27,680 lbs
Hardness: -3
Return Force max.: 61.0 lbs
Return Force min.: 23.5 lbs
Return Time: 0,34 s
Side Load Angle max.: 3 °
Impact velocity range: 0.5 ft/sec to 16.5 ft/sec. Other speeds on request.
Operating temperature range: 10 °F to 150 °F. Other temperatures on request.
Mounting: In any position
Positive stop: Integrated
Material: Outer body: Nitride hardened steel; Piston rod: Hard chrome plated steel; Rod end button: Hardened steel and corrosion-resistant coating; Return spring: Zinc plated or plastic-coated steel; Accessories: Steel with black oxide finish or nitride hardened
Damping medium: Automatic Transmission Fluid (ATF)
