ACE Controls MC4550-4-HT Industrial Shock Absorbers 217-0394

Industrial Shock Absorbers
MC4550-4-HT Extreme temperature and high cycle applications Self-Compensating, use at 32 °F to 302 °C
Energy capacity 6,550 in-lbs/cycle
Stroke 1.91 inch

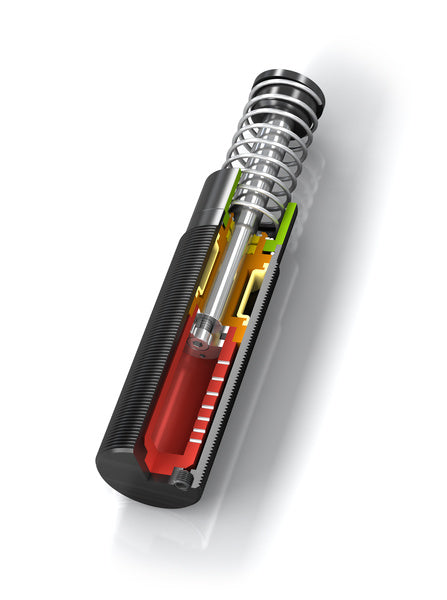

Greater application range: just like all MAGNUM types from the product family MC33 to MC64, the HT (high temperature) industrial shock absorbers are also made from one solid piece. They use special seals and fluids. This means that these versions can even be used at extreme temperatures of 32 °F to 302 °F in order to safely and reliably damp masses and absorb 100 % of the kinetic energy.
These ready-to-install machine elements are recommended even under the most unfavorable conditions. Additional benefits are their robust, innovative sealing technology, high energy absorption in a compact design, fixed positive stop and a wide damping range. Self-compensating shock absorbers react to changing energy conditions, without adjustment.

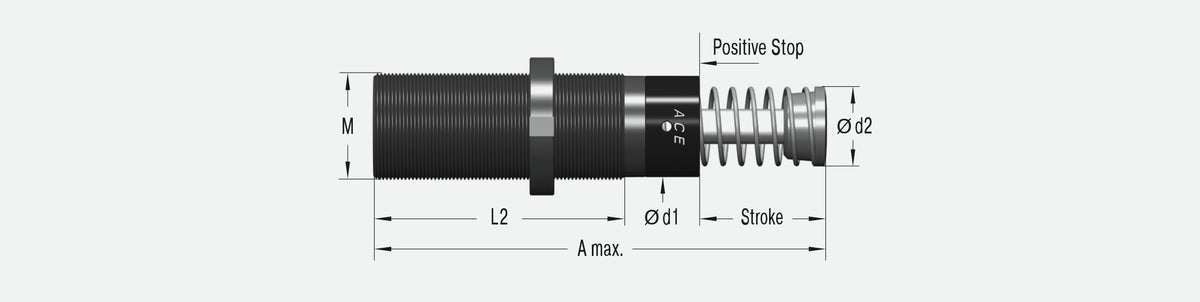

Stroke: 1.91 inch
A max.: 7.69 inch
L2: 4.72 inch
M: 1-3/4-12 UNF inch
d1: 1.65 inch
d2: 1.38 inch

Energy capacity: 6,550 in-lbs/cycle
Energy capacity at 20 °C: 2,841,087 in-lbs/h
Energy capacity at 100 °C: 1,079,790 in-lbs/h
Effective weight min.: 3,900 lbs
Effective weight max.: 15,600 lbs
Hardness: -4
Return Force max.: 32.2 lbs
Return Force min.: 15.1 lbs
Return Time: 0,08 s
Side Load Angle max.: 3 °
Impact velocity range: 0.5 ft/sec to 16.5 ft/sec. Other speeds on request.
Operating temperature range: 32 °F to 302 °F
Mounting: In any position
Positive stop: Integrated
Material: Outer body: Nitride hardened steel; Piston rod: Hard chrome plated steel; Rod end button: Hardened steel and corrosion-resistant coating; Return spring: Zinc plated or plastic-coated steel; Accessories: Steel with black oxide finish or nitride hardened
Damping medium: Synthetic high temperature oil
