ACE Controls MC3325-1 Industrial Shock Absorbers 216-0001
Industrial Shock Absorbers
MC3325-1 High energy absorption and robust design Self-Compensating
Energy capacity 1,505 in-lbs/cycle
Stroke 0.91 inch

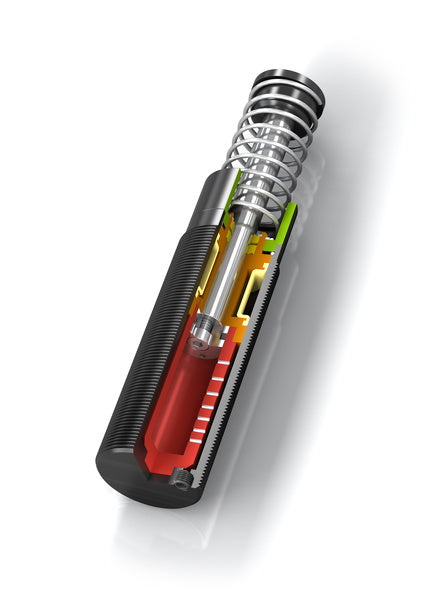

The latest damper technology: The combination of the latest sealing technology, annealed guide bearing and integrated positive stop make these self-compensating shock absorbers from ACE'S MAGNUM range so successful. After all, users benefit from the longer service life of the products, even in the most difficult environments. A continuous outer thread and extensive accessories make their contribution to the success story of the MC33 to MC64.
High energy absorption in a compact design and a wide damping range lead to huge advantages in practice. Alongside generally more compact designs, these small yet very powerful absorbers enable full use of the machine's performance. Self-compensating shock absorbers react to changing energy conditions, without adjustment.

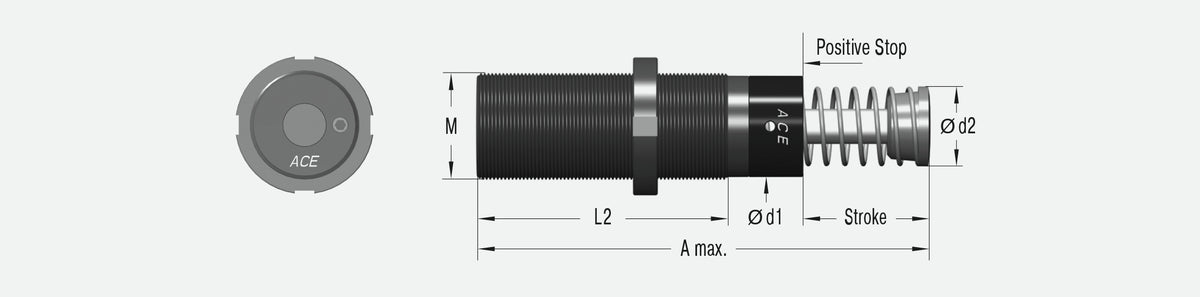

Stroke: 0.91 inch
A max.: 5.44 inch
L2: 3.25 inch
M: 1-1/4-12 UNF inch
d1: 1.15 inch
d2: 1.00 inch
Energy capacity: 1,505 in-lbs/cycle
Energy capacity: 670,000 in-lbs/h
Energy capacity with oil recirculation: 1,500,000 in-lbs/h
Energy capacity with air/oil tank: 1,100,000 in-lbs/h
Effective weight min.: 20 lbs
Effective weight max.: 80 lbs
Hardness: -1
Return Force max.: 19.8 lbs
Return Force min.: 10.3 lbs
Return Time: 0.03 s
Side Load Angle max.: 4 °
Impact velocity range: 0.5 ft/sec to 16.5 ft/sec. Other speeds on request.
Operating temperature range: 10 °F to 150 °F. Other temperatures on request.
Mounting: In any position
Positive stop: Integrated
Material: Outer body: Nitride hardened steel; Piston rod: Hard chrome plated steel; Rod end button: Hardened steel and corrosion-resistant coating; Return spring: Zinc plated or plastic-coated steel; Accessories: Steel with black oxide finish or nitride hardened
Damping medium: Automatic Transmission Fluid (ATF)
