Brand: ACE Controls
ACE Controls MC225MH3-V4A Miniature Shock Absorbers 191-9385
SKU: ACE-MC 225MH3-V4A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all ACE Controls product orders*
ACE Controls MC225MH3-V4A Miniature Shock Absorbers 191-9385
Miniature Shock Absorbers
MC225MH3-V4A Exceptionally high endurance with stainless steel corrosion protection Self-Compensating, Stainless Steel, Rolling Diaphragm Technology
Energy capacity 360 in-lbs/cycle
Stroke 0.5 inch

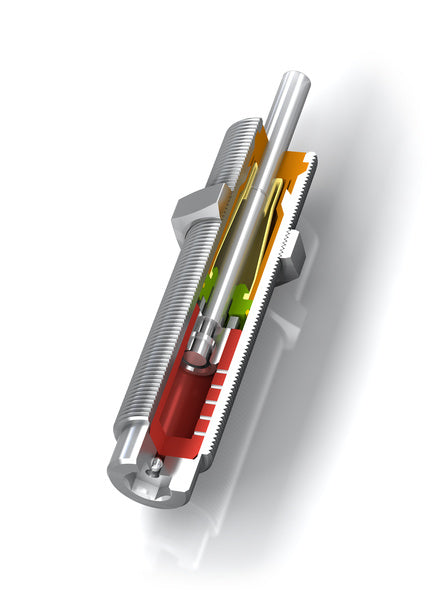

Brilliant in every respect: These high performance stainless steel miniature shock absorbers are based on the MC150 to MC600 product family and its proven damping technology. This means that these special absorbers offer all of the benefits of the standard units such as the ACE rolling diaphragm technology which delivers maximum service life and direct installation in a pressure chamber with up to approx. 100 psi (7 bar).
Thanks to perfectly progressive maximum energy absorption and effective weight potential, their use is augmented even further by the stainless steel outer body and a complete range of stainless accessories (AISI 316L). Self-compensating shock absorbers react to changing energy conditions, without adjustment.
These self-compensating miniature stainless steel shock absorbers are used in medical and electro-technology, as well as marine, packaging, and chemical applications. Shocks can be filled with food-grade oil for food processing applications.

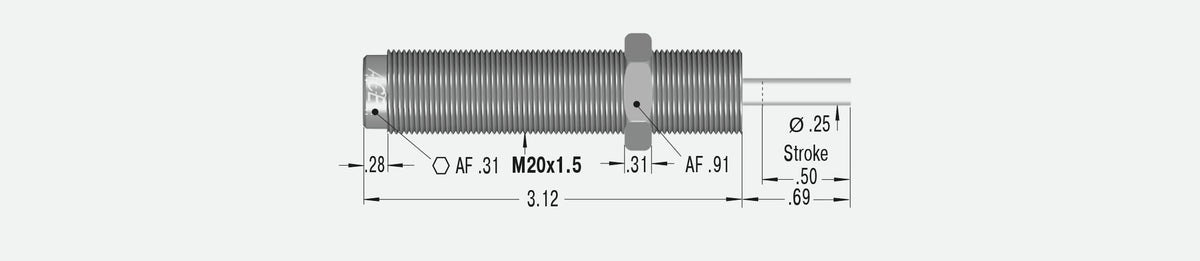

Stroke: 0.5 inch
M: M20x1.5 inch
Energy capacity: 360 in-lbs/cycle
Energy capacity: 400,000 in-lbs/h
Effective weight min.: 1,800 lbs
Effective weight max.: 4,000 lbs
Return Force min.: 1.0 lbs
Return Force max.: 1.5 lbs
Return Time: 0.3 s
Side Load Angle max.: 4 °
Impact velocity range: 0.22 ft/sec to 19.7 ft/sec. Other speeds on request.
Operating temperature range: 32 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Material: Outer body, Locknut, Accessories: Stainless steel (1.4404, AISI 316L); Main bearing: Plastic; Piston rod: Hardened stainless steel (1.4125, AISI 440C); Rolling diaphragm: EPDM
Damping medium: Oil, temperature stable
