Brand: ACE Controls
ACE Controls MC225 Miniature Shock Absorbers 191-0301
SKU: ACE-MC 225
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all ACE Controls product orders*
**All ACE Controls products are made-to-order and will require lead-time if not in stock at manufacturer**
ACE Controls MC225 Miniature Shock Absorbers 191-0301
Miniature Shock Absorbers
MC225 Exceptionally high endurance and with the lowest resetting force Self-Compensating, Rolling Diaphragm Technology
Energy capacity 360 in-lbs/cycle
Stroke 0.5 inch

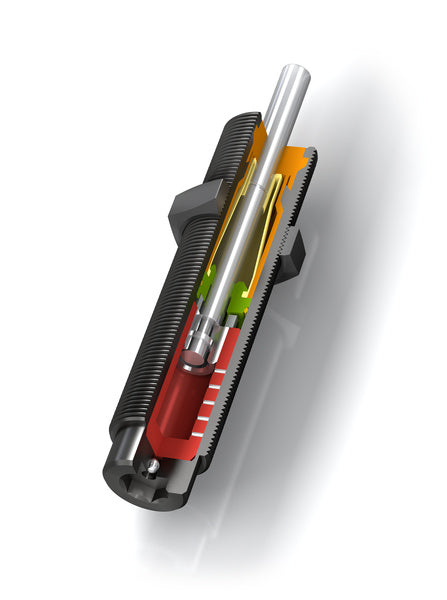

Tried-and-tested and durable: With a hermetically sealed rolling diaphragm in each absorber, the MC150 to MC600 product family is suitable for an exceptionally high lifetime of use with up to 25 million cycles. The rolling diaphragm technology perfected by ACE ensures complete separation of the damping fluid from the surrounding air. This makes it possible for direct installation in a pressure chamber to provide end stop damping in pneumatic cylinders up to approximately 100 psi (7 bar).
The rolling diaphragm delivers very low return forces for these maintenance-free, ready-to-install absorbers. An integrated positive stop and progressive energy capacities, with a wide range of effective weight, make these miniature shock absorbers a winner. Furthermore, the use of a side load adapter allows impact angles of up to 25°. Stainless steel options are available for greater environmental compatibility. Self-compensating shock absorbers react to changing energy conditions, without adjustment.
These self compensating miniature shock absorbers are capable of universal mounting even inside a cylinder. These shocks are ideal for use in multitude of applications including material handling equipment, packaging equipment, medium robotics and machine tools.

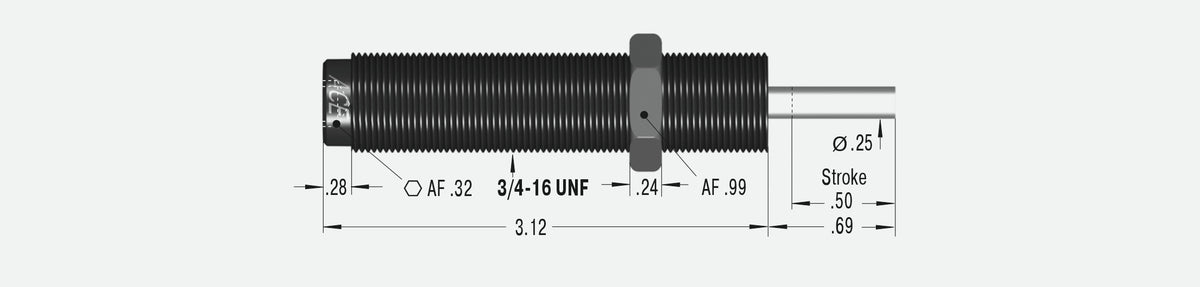

Stroke: 0.5 inch
M: 3/4-16 UNF inch
Energy capacity: 360 in-lbs/cycle
Energy capacity: 400,000 in-lbs/h
Effective weight min.: 5 lbs
Effective weight max.: 55 lbs
Return Force min.: 1.0 lbs
Return Force max.: 1.5 lbs
Return Time: 0.3 s
Side Load Angle max.: 4 °
Impact velocity range: 0.22 ft/sec to 1.03 ft/sec
Operating temperature range: 32 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Material: Outer body, Accessories: Steel corrosion-resistant coating; Main bearing: Plastic; Piston rod: Hardened stainless steel (1.4125, AISI 440C); Rolling diaphragm: EPDM
Damping medium: Oil, temperature stable
