ACE Controls MC10MH-B Miniature Shock Absorbers 186-0022

Miniature Shock Absorbers
MC10MH-B Shock absorbers in miniature format Self-Compensating
Energy capacity 11 in-lbs/cycle
Stroke 0.2 inch
Ideal for compact, efficient designs: The miniature size of the product family MC5 to MC75 delivers very short overall lengths and low return forces.

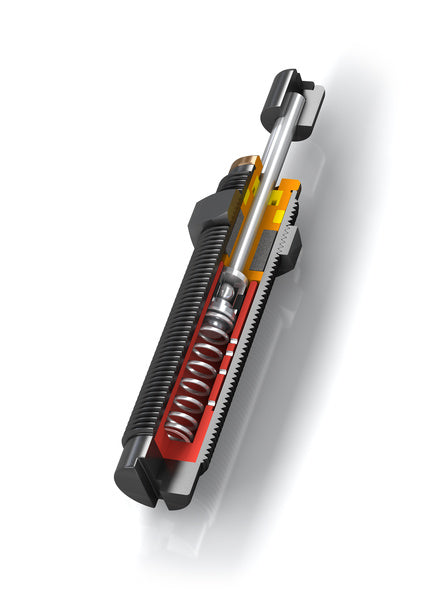

The outer body of each shock, produced from one solid piece, is filled with temperature stable oil, offers a continuous outer body thread including a supplied lock nut and also has an integrated positive stop. These maintenance-free hydraulic machine elements from ACE are ready for immediate installation. A wide range of energy absorption and effective weight are further benefits in these compact units. Self-compensating shock absorbers react to changing energy conditions, without adjustment.
These self-compensating miniature shock absorbers are perfectly suited to use in applications such as rotary actuators, automation, light industrial manufacturing, material handling and packaging equipment, medical, electronics and robotics.

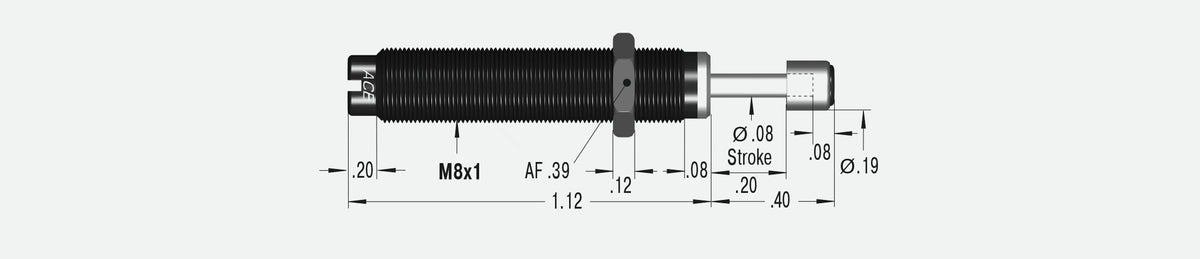

Stroke: 0.2 inch
M: M8x1 inch

Energy capacity: 11 in-lbs/cycle
Energy capacity: 35,000 in-lbs/h
Effective weight min.: 1.5 lbs
Effective weight max.: 11.0 lbs
Return Force min.: 0.5 lbs
Return Force max.: 1.0 lbs
Return Time: 0.3 s
Side Load Angle max.: 3 °
Impact velocity range: 0.5 ft/sec to 5 ft/sec
Operating temperature range: 14 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Material: Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel; Rod end button: Steel, MC25 and MC75: Elastomer Insert; Locknut: Steel, MC5 and MC9: Aluminium
Damping medium: Oil, temperature stable
