ACE Controls MA50M Hydraulic Feed Controls 181-0001

*Please note, there is a $75 minimum for all ACE Controls product orders*

**All ACE Controls products are made-to-order and will require lead-time if not in stock at manufacturer**

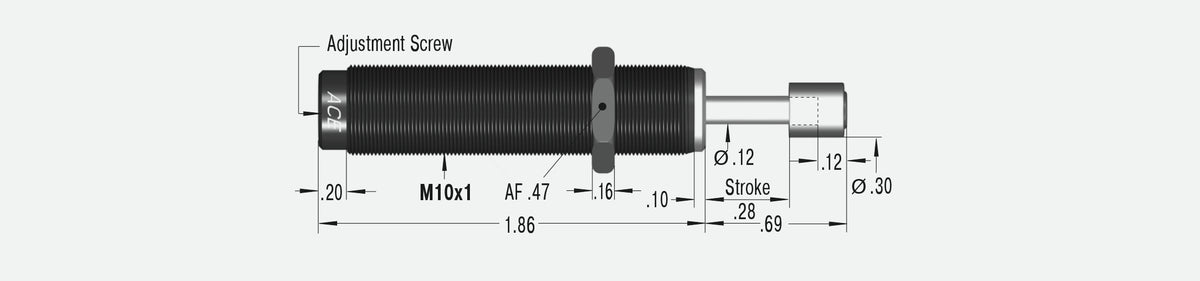

ACE Controls MA50M Hydraulic Feed Controls 181-0001

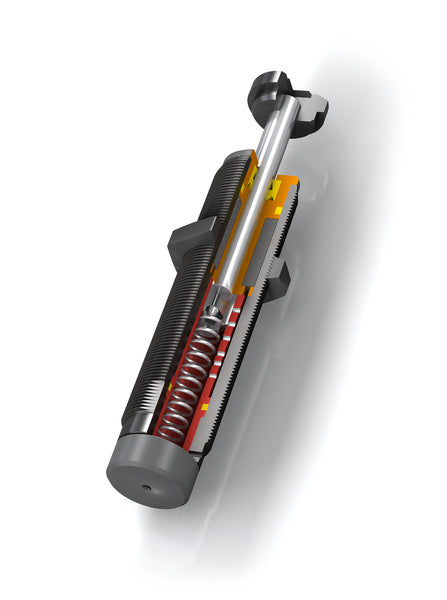

Hydraulic Feed Controls
MA50M Designed for applications with low precision requirements Adjustable
Energy capacity 50 in-lbs/cycle
Stroke 0.28 inch
Many application options: the hydraulic feed controls in models MA and MVC are similar to that of the VC model. However, these hydraulic controls have been designed for applications that require less precision.
There are also plenty of accessories for the MA and MVC models. All products are ready-to-install, maintenance-free, stable in temperature and avoid stick-slip effect. Speeds from 0.47"ACE Controls MA50M Hydraulic Feed Controls 181-0001"/min. (12 mm/min.) can be driven at a low thrust force using the adjustment screw on the base of the hydraulic control.
Hydraulic feed controls with the designations MA and MVC are especially used in handling modules or linear carriages and also for applications with changing usage data.

Stroke: 0.28 inch
M: M10x1 inch

Energy capacity: 50 in-lbs/cycle
Energy capacity: 120,000 in-lbs/h
Effective weight min.: 10 lbs
Effective weight max.: 45 lbs
Return Force min.: 0.47 lbs
Return Force max.: 1.80 lbs
Return Time: 0.3 s
Side Load Angle max.: 2 °
Impact velocity range: 2.4 ft/sec to 5.2 ft/sec
Operating temperature range: 32 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Adjustment: Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.
Material: Outer body: Nitride hardened steel; Piston rod: Steel with black oxide finish or nitride hardened
Damping medium: Oil, temperature stable
