Brand: ACE Controls
ACE Controls MA30M Hydraulic Feed Controls 128-0001
SKU: ACE-MA 30M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all ACE Controls product orders*
**All ACE Controls products are made-to-order and will require lead-time if not in stock at manufacturer**
ACE Controls MA30M Hydraulic Feed Controls 128-0001
Hydraulic Feed Controls
MA30M Stepless adjustment Adjustable
Energy capacity 31 in-lbs/cycle
Stroke 0.32 inch

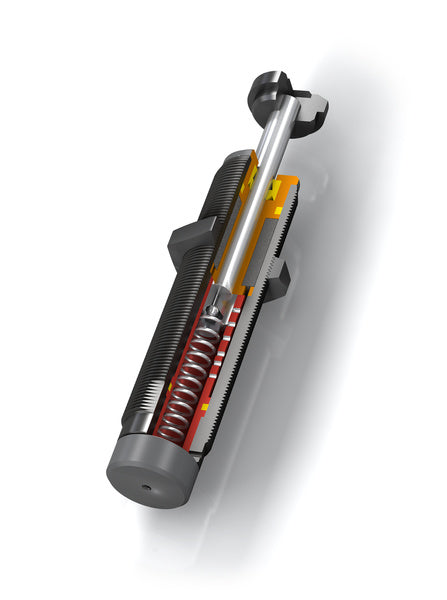

Many application options: the hydraulic feed controls in models MA and MVC are similar to that of the VC model. However, these hydraulic controls have been designed for applications that require less precision.
There are also plenty of accessories for the MA and MVC models. All products are ready-to-install, maintenance-free, stable in temperature and avoid stick-slip effect. Speeds from 0.47"ACE Controls MA30M Hydraulic Feed Controls 128-0001"/min. (12 mm/min.) can be driven at a low thrust force using the adjustment screw on the base of the hydraulic control.
These adjustable miniature shock absorbers from ACE can be used to precisely meet the customer's application needs and are therefore found everywhere in industrial, automation and machine engineering and many other applications.

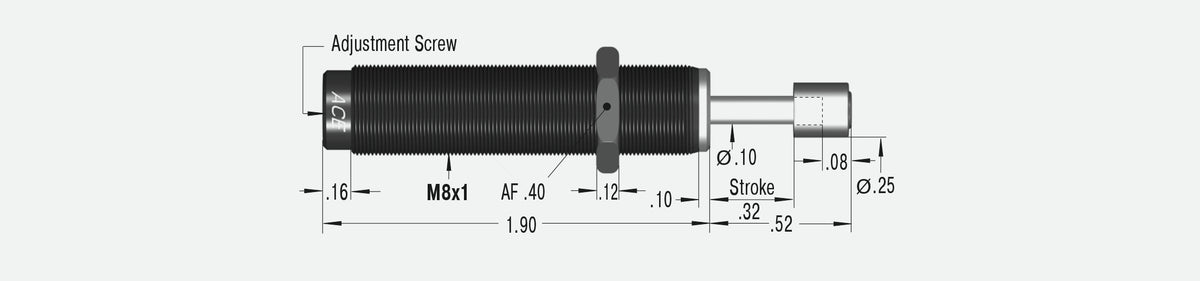

Stroke: 0.32 inch
M: M8x1 inch
Energy capacity: 31 in-lbs/cycle
Energy capacity: 50,000 in-lbs/h
Effective weight min.: 0.5 lbs
Effective weight max.: 31 lbs
Return Force min.: 1.16 lbs
Return Force max.: 1.57 lbs
Return Time: 0.3 s
Side Load Angle max.: 2 °
Impact velocity range: At speeds of 0.98 ft/sec the maximum allowed energy is approx. 17.70 in-lbs. Where higher energies occur use a shock absorber for the initial impact. Avoid high impact velocities.
Operating temperature range: 32 °F to 150 °F
Mounting: In any position
Positive stop: Integrated
Adjustment: Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.
Material: Outer body, Accessories: Steel corrosion-resistant coating; Piston rod: Hardened stainless steel
Damping medium: Oil, temperature stable
